Diameter 6.5'' (165mm) H:1.38'' (35mm)
Regular price
$15.36
| SKU | 160ASL-16-165 |
| Type | Round LED Heatsink |
| Material | Aluminum 6063-T5 |
| Surface | Non-Anodized (Mill Finish) |

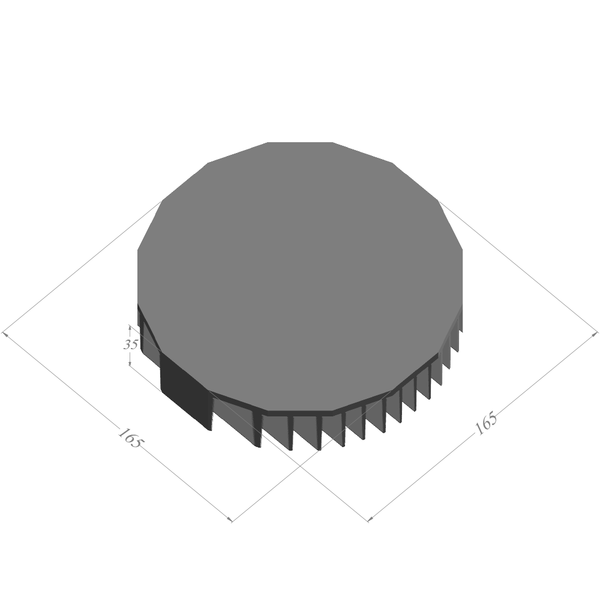

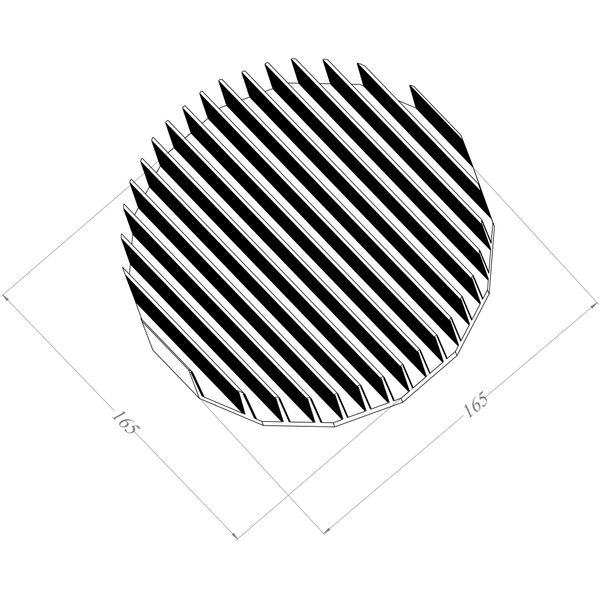

| Diameter (Width) | 165mm / 6.5'' |
| Height |
35mm / 1.38'' |

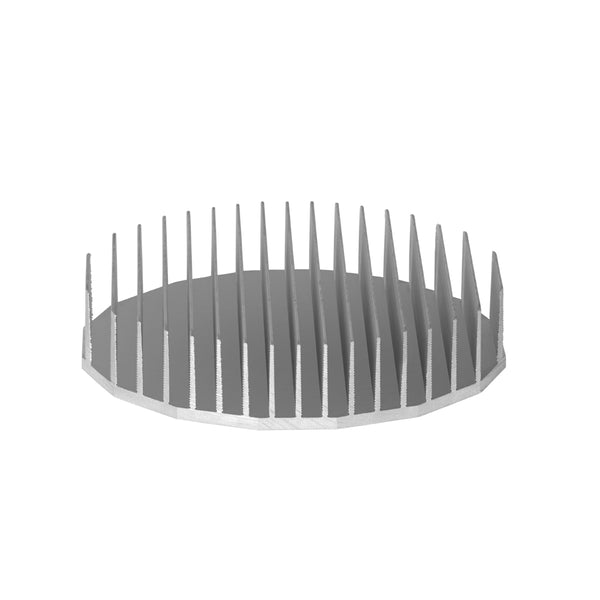

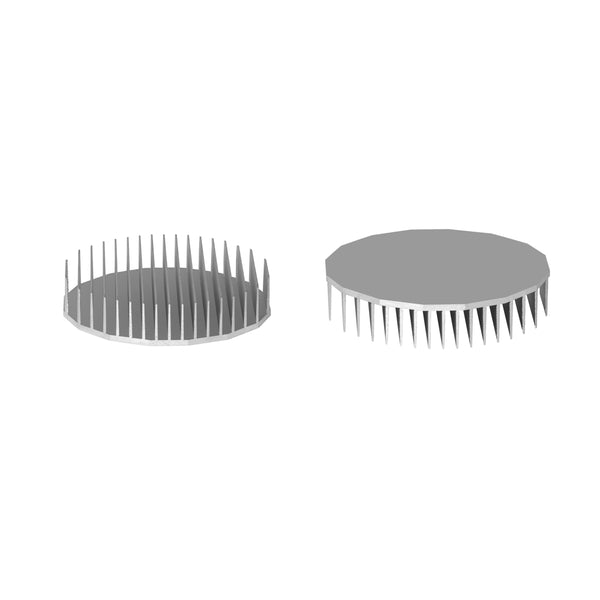

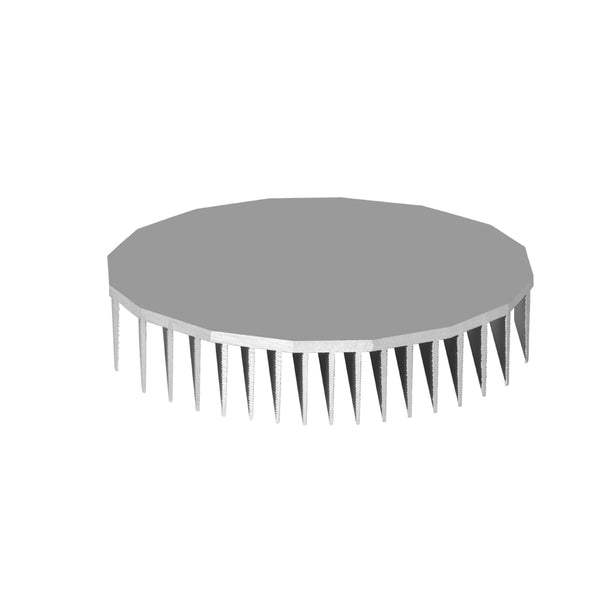

This 16-Sided LED Heatsink is derived from 160AS Heatsink Extrusion with 16 equal vertical cuts.
It is a purpose-built heatsink for mounting LED PCBs up to 165mm / 6.5'' diameter.
Through maximizing the surface contact of LED PCB to increase the heatsink performance, it is a cost effective solution for Round LED Products.
