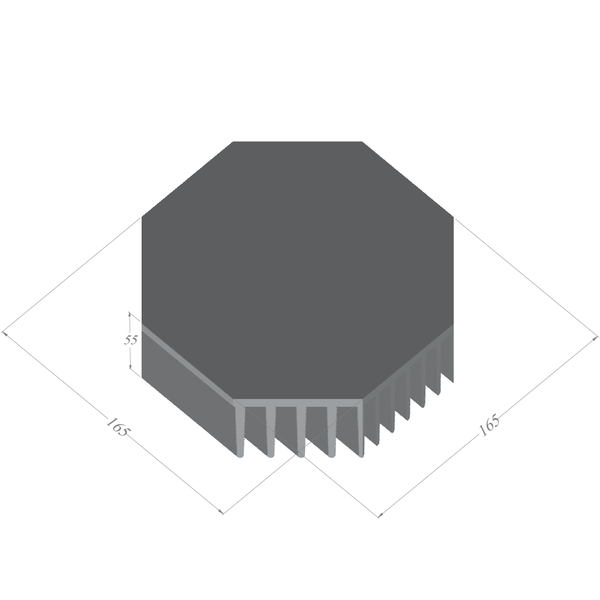

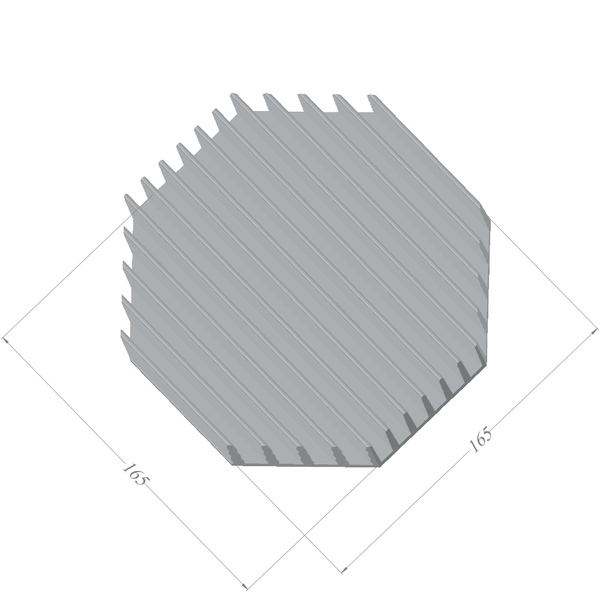

Diameter ⌀6.5'' (⌀165mm) H:2.17'' (55mm)
Regular price
$23.75
SKU | 165ASL-8-165 |
Type | Round LED Heatsink |
Material | Aluminum 6063-T5 |
Surface | Non-Anodized (Mill Finish) |
Diameter (Width) | ⌀165mm / ⌀6.5'' |
Height |
55mm / 2.17'' |

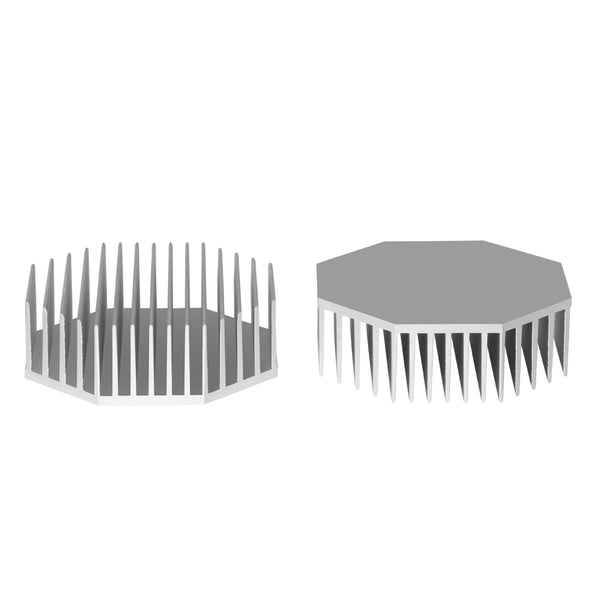

This 8-Sided LED Heatsink is derived from 165AS Heatsink Extrusion with 8 equal vertical cuts.
It is a purpose-built heatsink for mounting LED PCBs up to ⌀165mm / ⌀6.5'' diameter.
Through maximizing the surface contact of LED PCB to increase the heatsink performance, it is a cost effective solution for Round LED Products.
