Diameter ⌀5.51" (⌀140mm)
Regular price
$6.85
| SKU | 1997ASL |

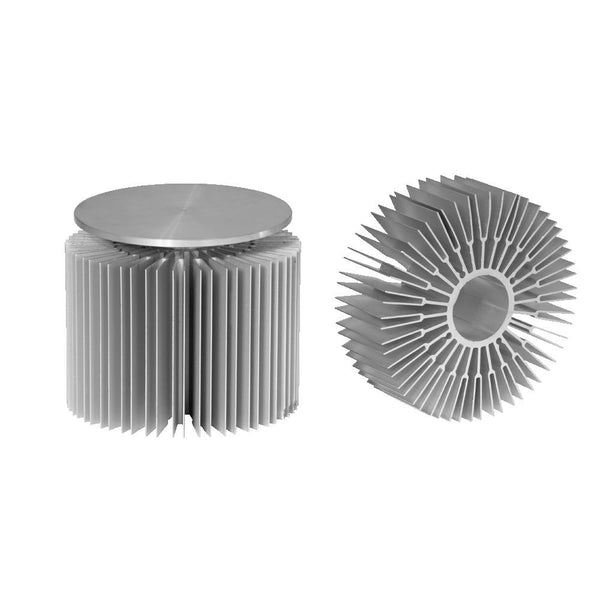

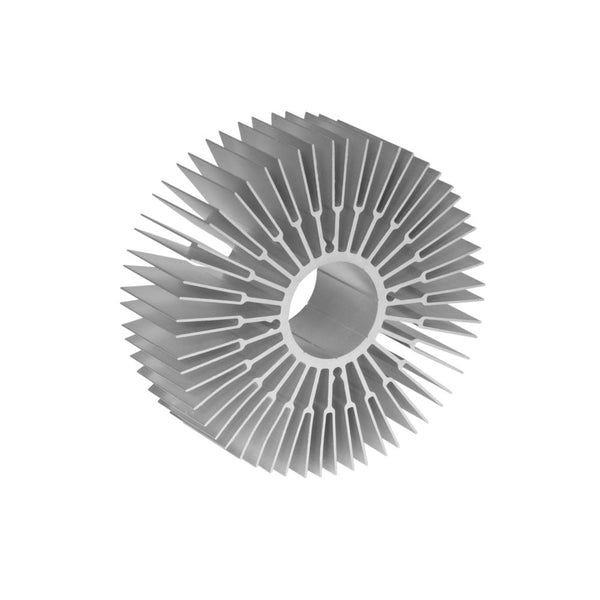

| Type | Round LED Heatsink |
| Material | Aluminum 6063-T5 |
| Surface | Non-Anodized (Mill Finish) |

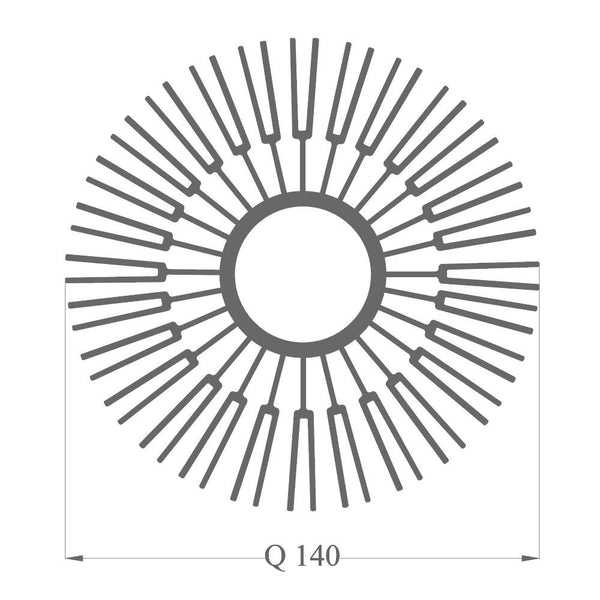

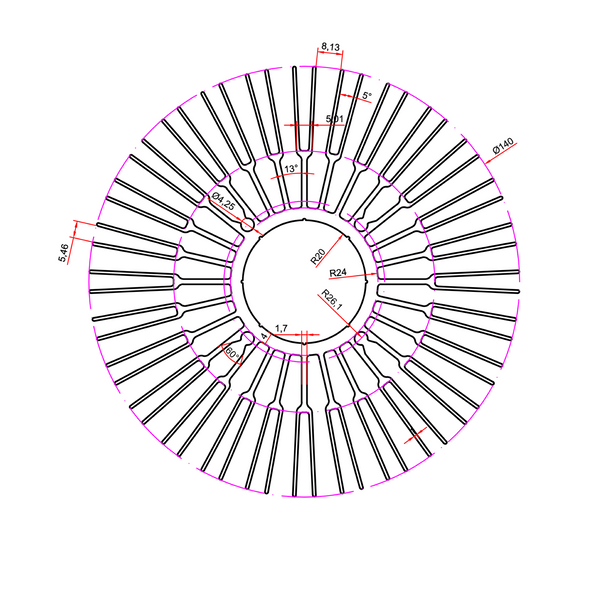

| Diameter (O.D.) | ⌀140mm / ⌀5.51'' |
| Inner Diameter (I.D.) | ⌀40mm / ⌀1.57'' |
| T-Plug Diameter | ⌀130mm / ⌀5.12'' |

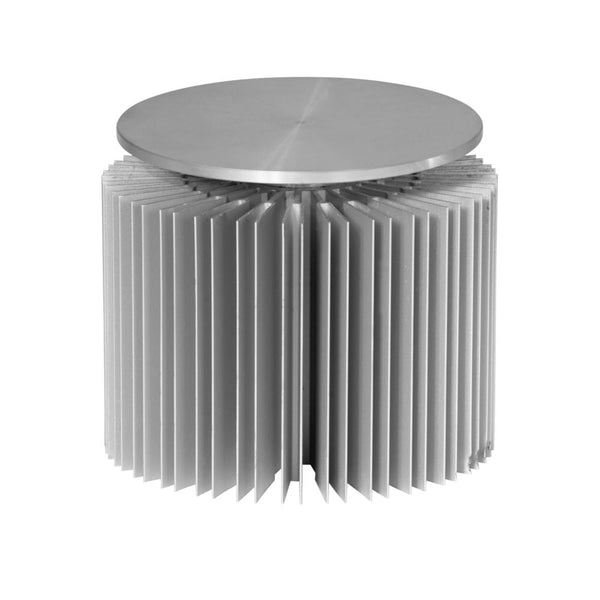

*Special design CNC Machined T-Plugs are built to fit in 1997ASL Round Heatsink for LED PCB applications. T-Plugs are purpose built parts to increase the surface contact area of LED PCB and maximize the heatsink performance.
