Diameter 5.31'' (135mm) H:0.98'' (25mm)
Regular price
$10.07
| SKU | 460ASL-8-135 |
| Type | Round LED Heatsink |
| Material | Aluminum 6063-T5 |
| Surface | Non-Anodized (Mill Finish) |
| Diameter (Width) | 135mm / 5.31'' |
| Height |
25mm / 0.98'' |

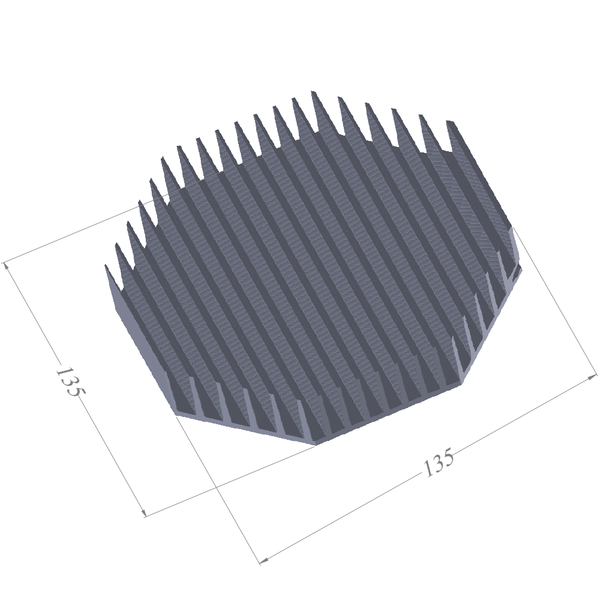

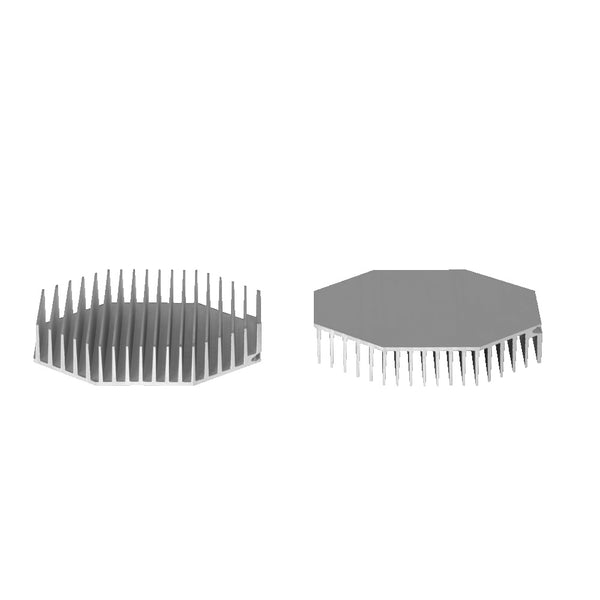

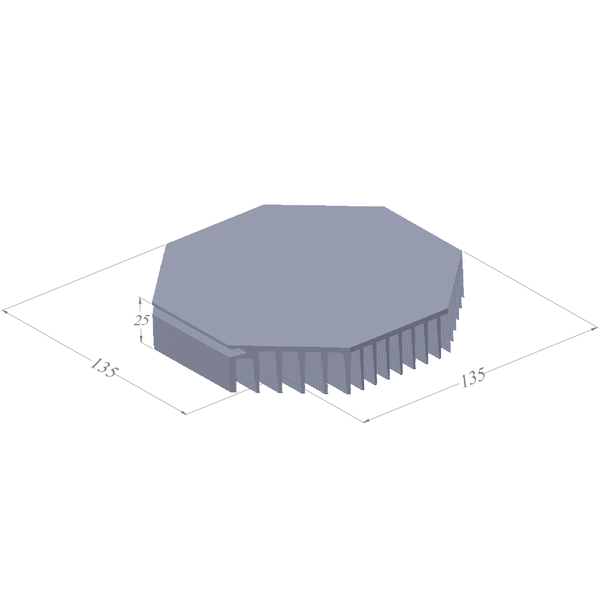

This 8-Sided LED Heatsink is derived from 460AS Heatsink Extrusion with 8 equal vertical cuts.
It is a purpose-built heatsink for mounting LED PCBs up to 135mm / 5.31'' diameter.
Through maximizing the surface contact of LED PCB to increase the heatsink performance, it is a cost effective solution for Round LED Products.
