Diameter ⌀5.51'' (⌀140mm) H:0.98'' (25mm)
Diameter ⌀5.51'' (⌀140mm) H:0.98'' (25mm)
Diameter ⌀5.51'' (⌀140mm) H:0.98'' (25mm)

Diameter ⌀5.51'' (⌀140mm) H:0.98'' (25mm)

Regular price $9.05 $0.00 Unit price per

SKU 460ASL-8-140
 Type Round LED Heatsink
Material Aluminum 6063-T5
Surface Non-Anodized (Mill Finish)

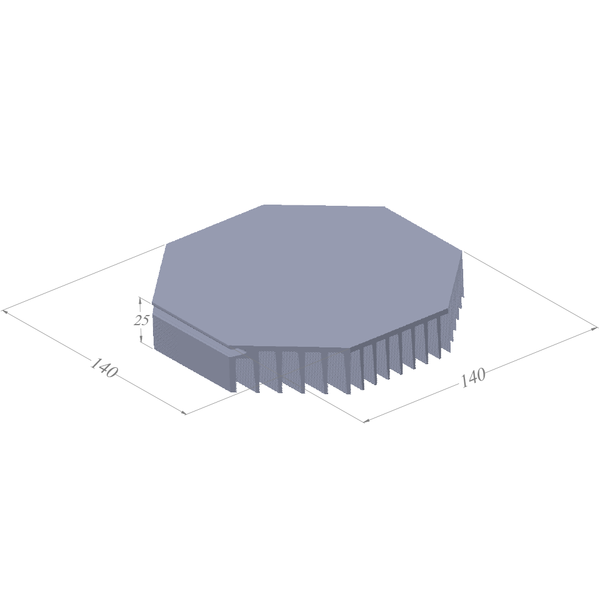

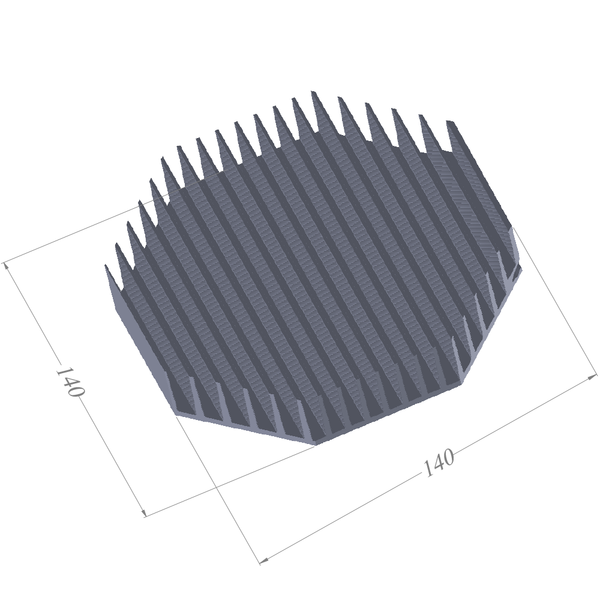

Diameter (Width) ⌀140mm / ⌀5.51''
Height
25mm / 0.98''

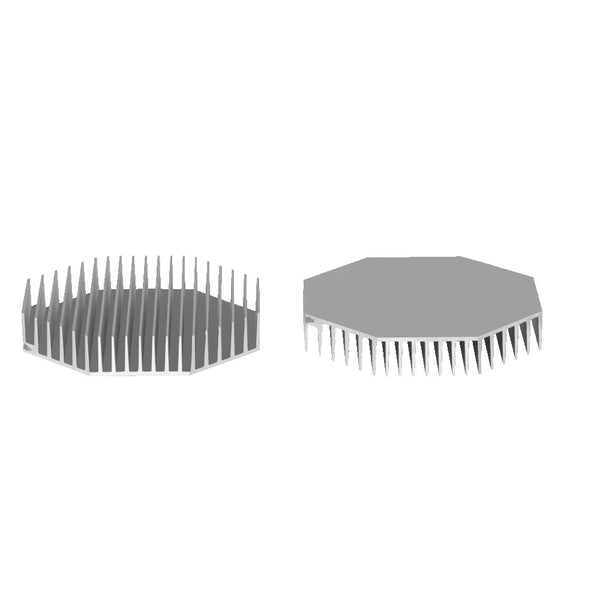

This 8-Sided LED Heatsink is derived from 460AS Heatsink Extrusion with 8 equal vertical cuts.

It is a purpose-built heatsink for mounting LED PCBs up to ⌀140mm / ⌀5.51'' diameter.

Through maximizing the surface contact of LED PCB to increase the heatsink performance, it is a cost effective solution for Round LED Products.
