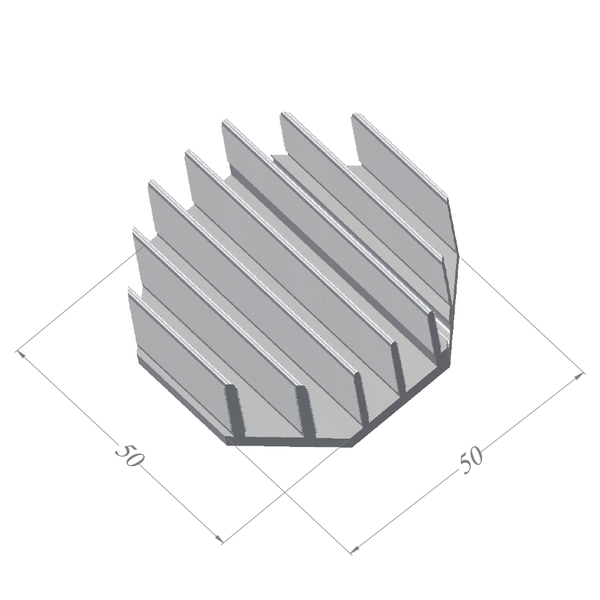

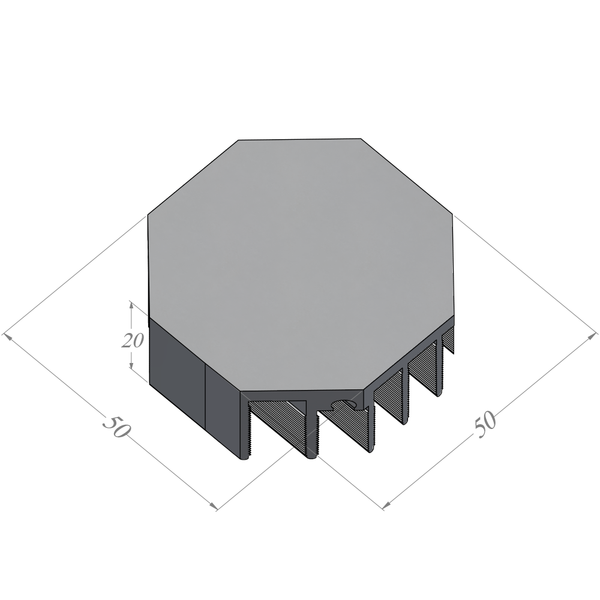

Diameter ⌀1.97'' (⌀50mm) H:0.79'' (20mm)
Regular price
$1.55
| SKU | 64ASL-8-50 |
| Type | Round LED Heatsink |
| Material | Aluminum 6063-T5 |
| Surface | Non-Anodized (Mill Finish) |
| Diameter (Width) | ⌀50mm / ⌀1.97'' |
| Height |
20mm / 0.79'' |

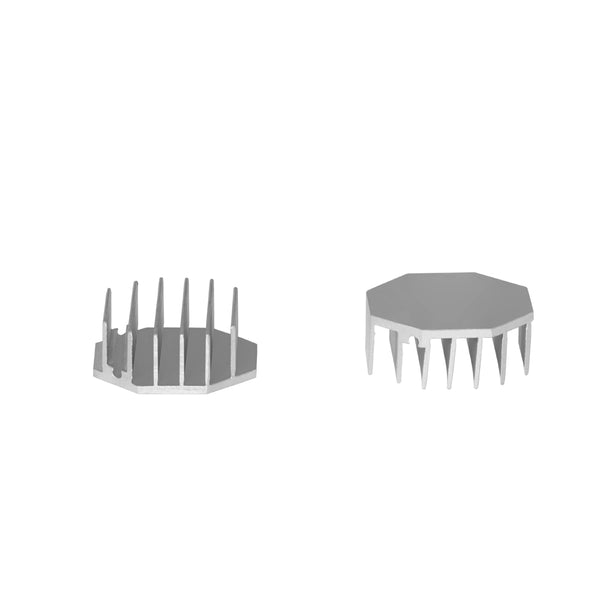

This 8-Sided LED Heatsink is derived from 64AS Heatsink Extrusion with 8 equal vertical cuts.
It is a purpose-built heatsink for mounting LED PCBs up to ⌀50mm / ⌀1.97'' diameter.
Through maximizing the surface contact of LED PCB to increase the heatsink performance, it is a cost effective solution for Round LED Products.
