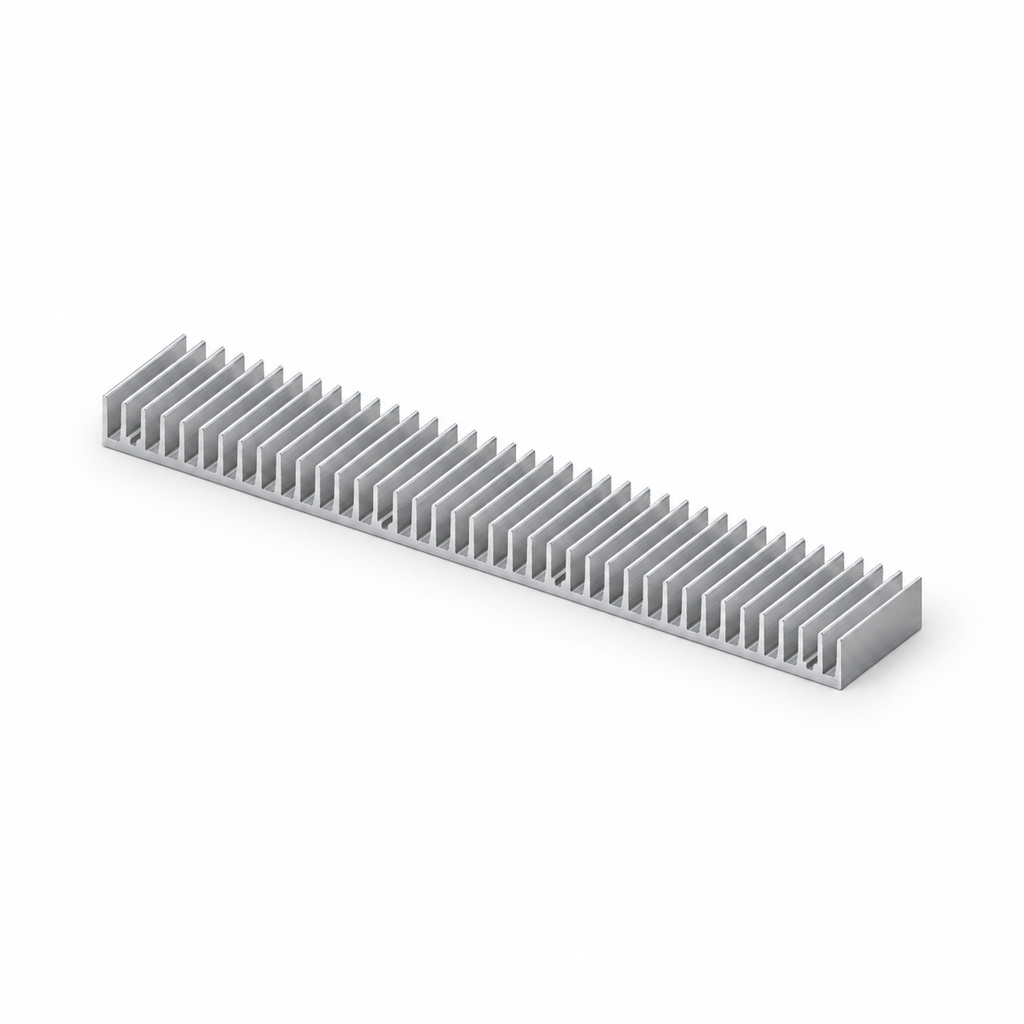

11.811'' (300mm) Wide Heatsink (1064AS)
11.811'' (300mm) Wide Heatsink (1064AS)

11.811'' (300mm) Wide Heatsink (1064AS)

Regular price $2.45 $0.00 Unit price per

SKU 1064AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

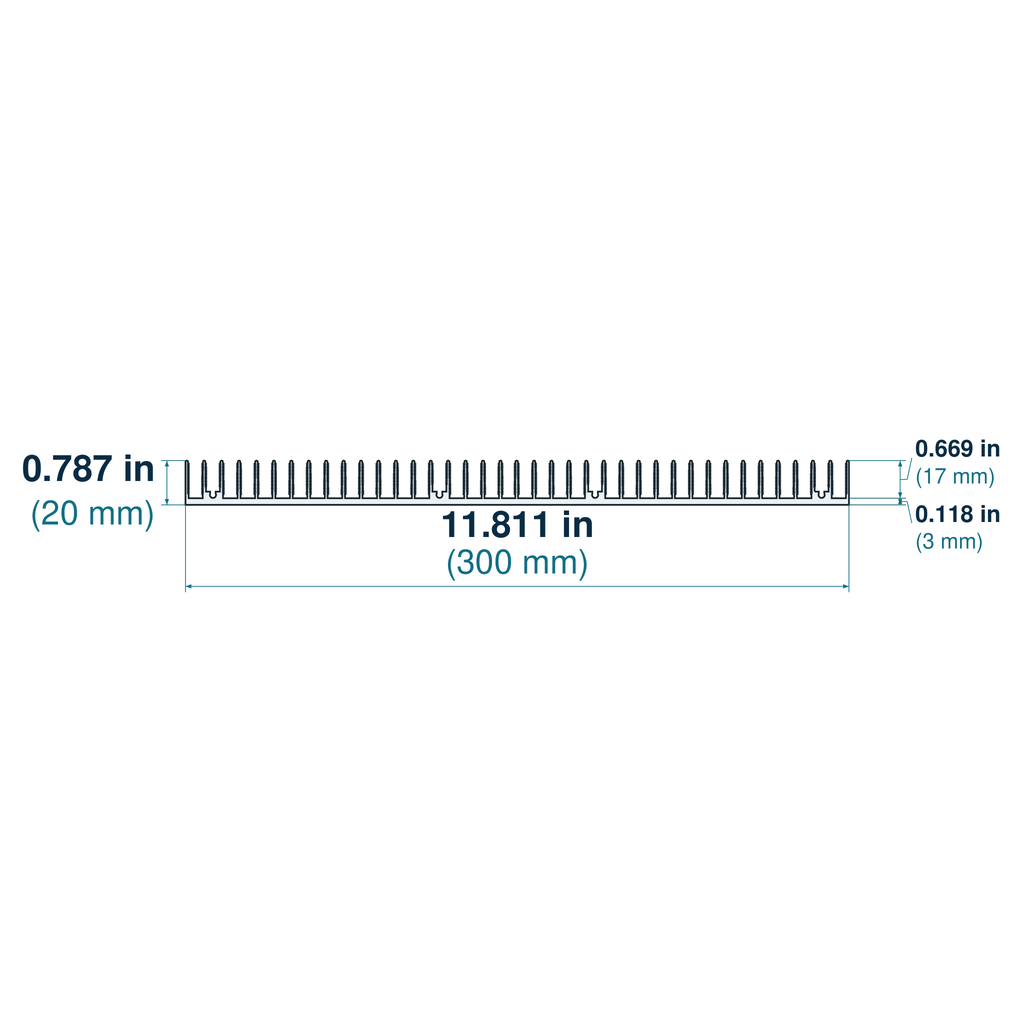

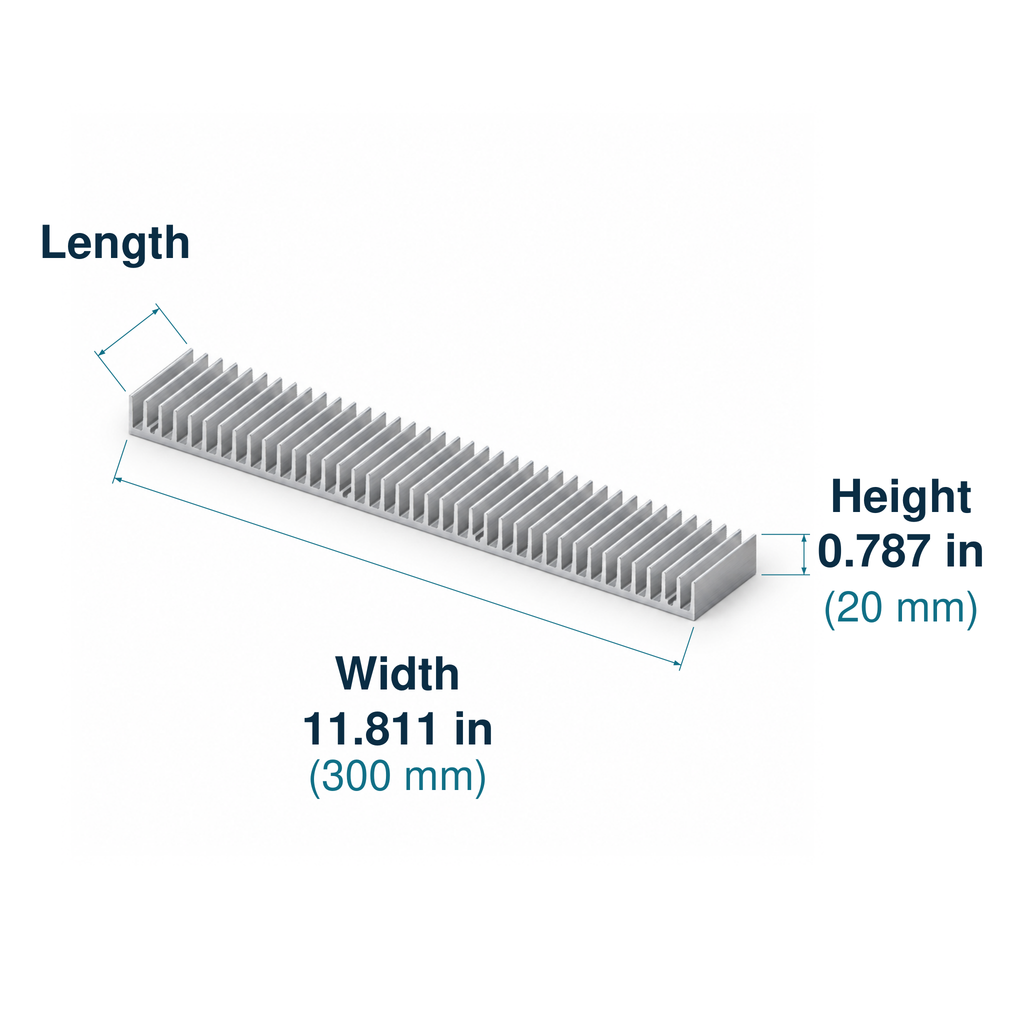

300mm / 11.811''
20mm / 0.787''
Fin Height 17mm / 0.669''
Base Height 3mm / 0.118''
C/W/3''(75mm) Approximate 0.612
Weight 5200gr/m - 0.3lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length fro the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed¬†on your heatsink.
