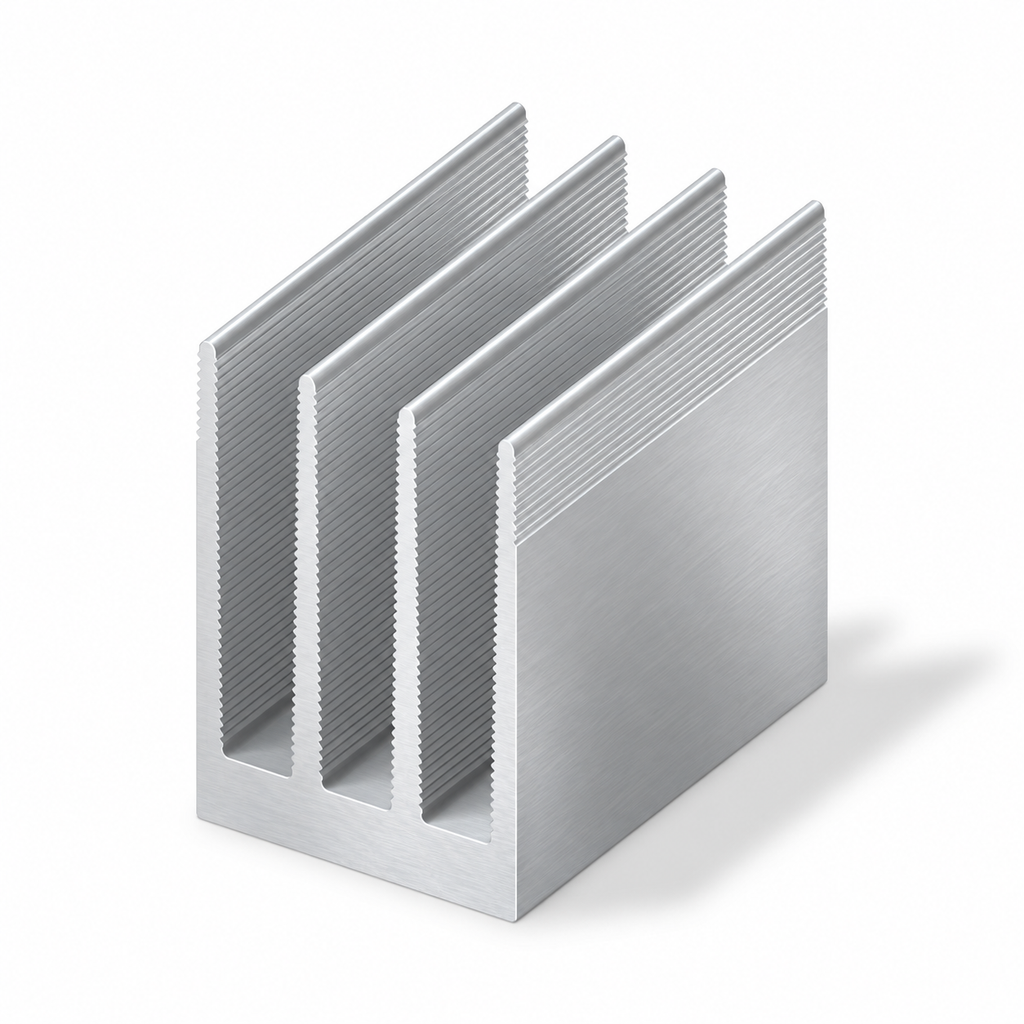

1.331'' (33.8mm) Wide Heatsink (1551AS)
1.331'' (33.8mm) Wide Heatsink (1551AS)

1.331'' (33.8mm) Wide Heatsink (1551AS)

Regular price $0.80 $0.00 Unit price per

SKU 1551AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

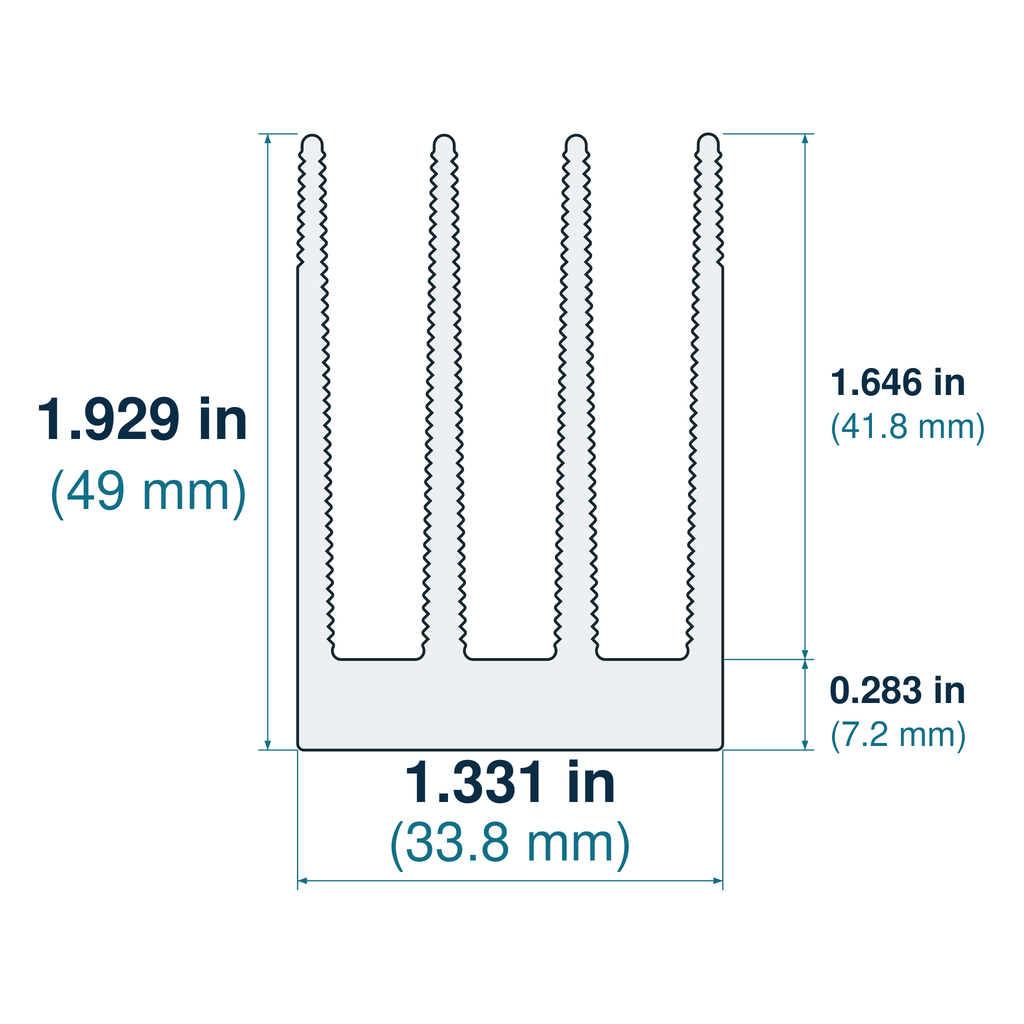

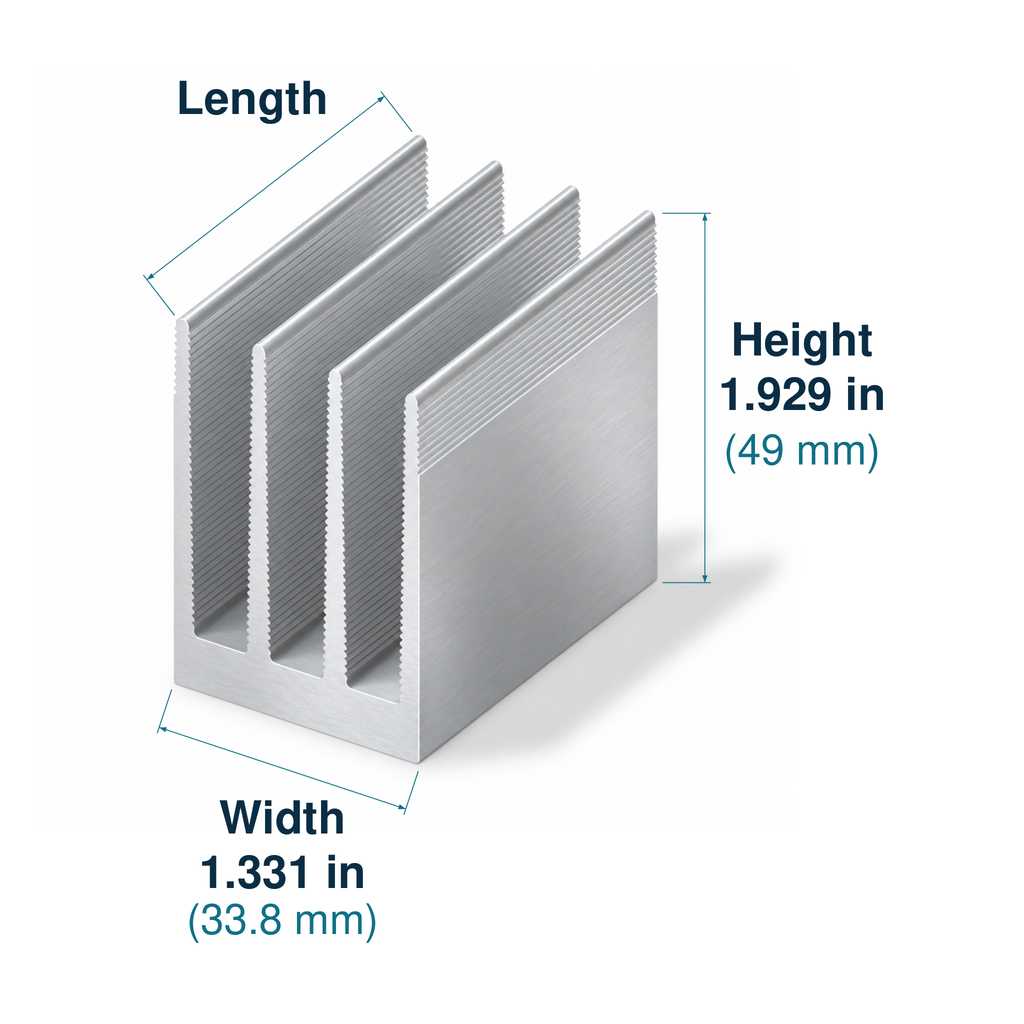

33.8mm / 1.331''
49mm / 1.929''
Fin Height 41.8mm / 1.646''
Base Height 7.2mm / 0.283''
C/W/3''(75mm) Approximate 2.76
Weight 1700gr/m - 0.1lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
