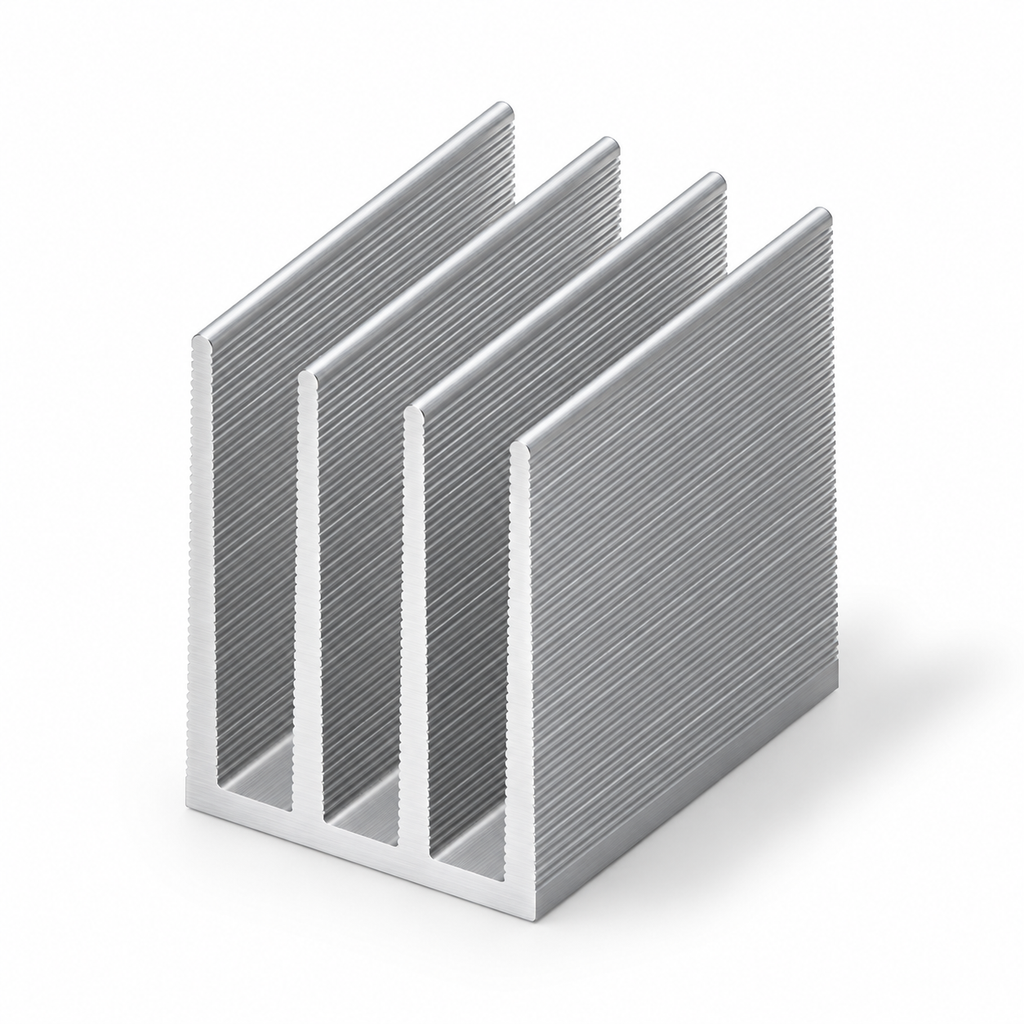

1.496'' (38mm) Wide Heatsink (1661AS)

1.496'' (38mm) Wide Heatsink (1661AS)

Regular price $0.79 $0.00 Unit price per

SKU 1661AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

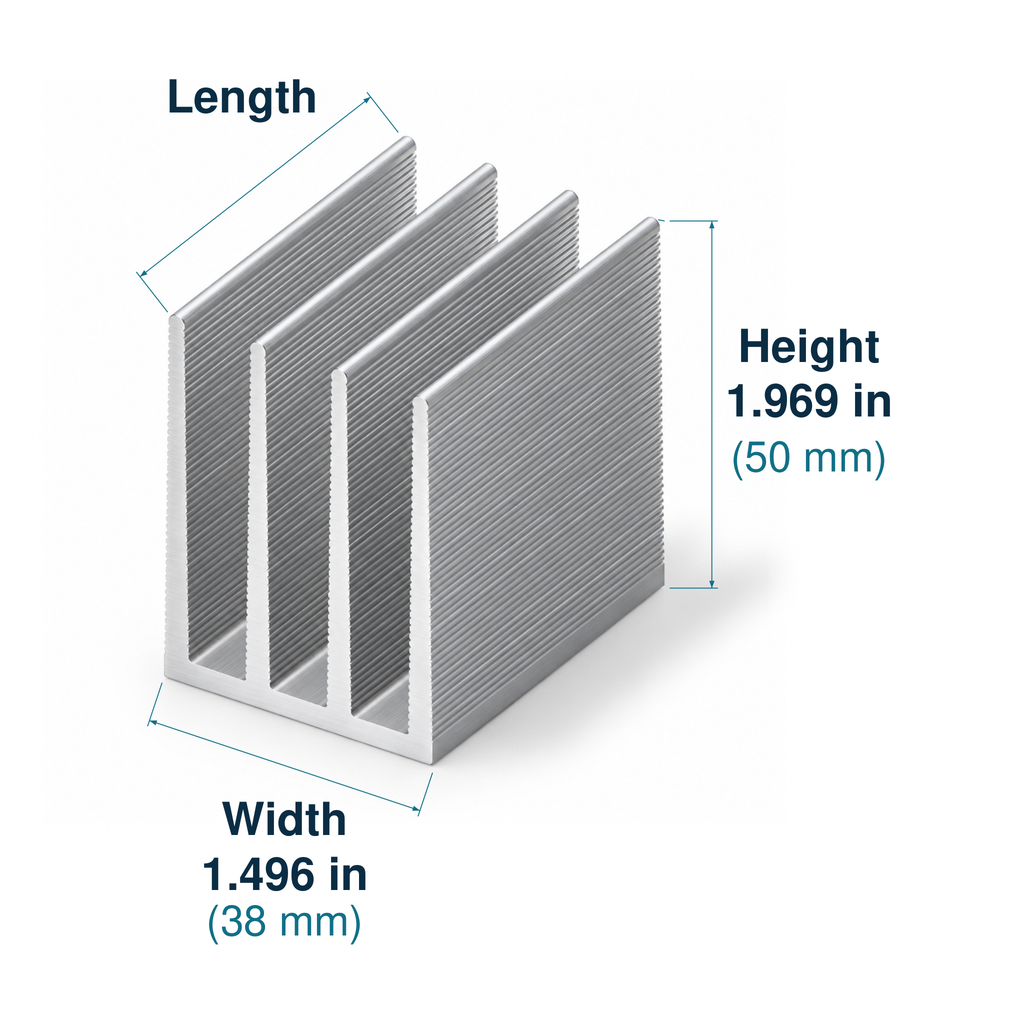

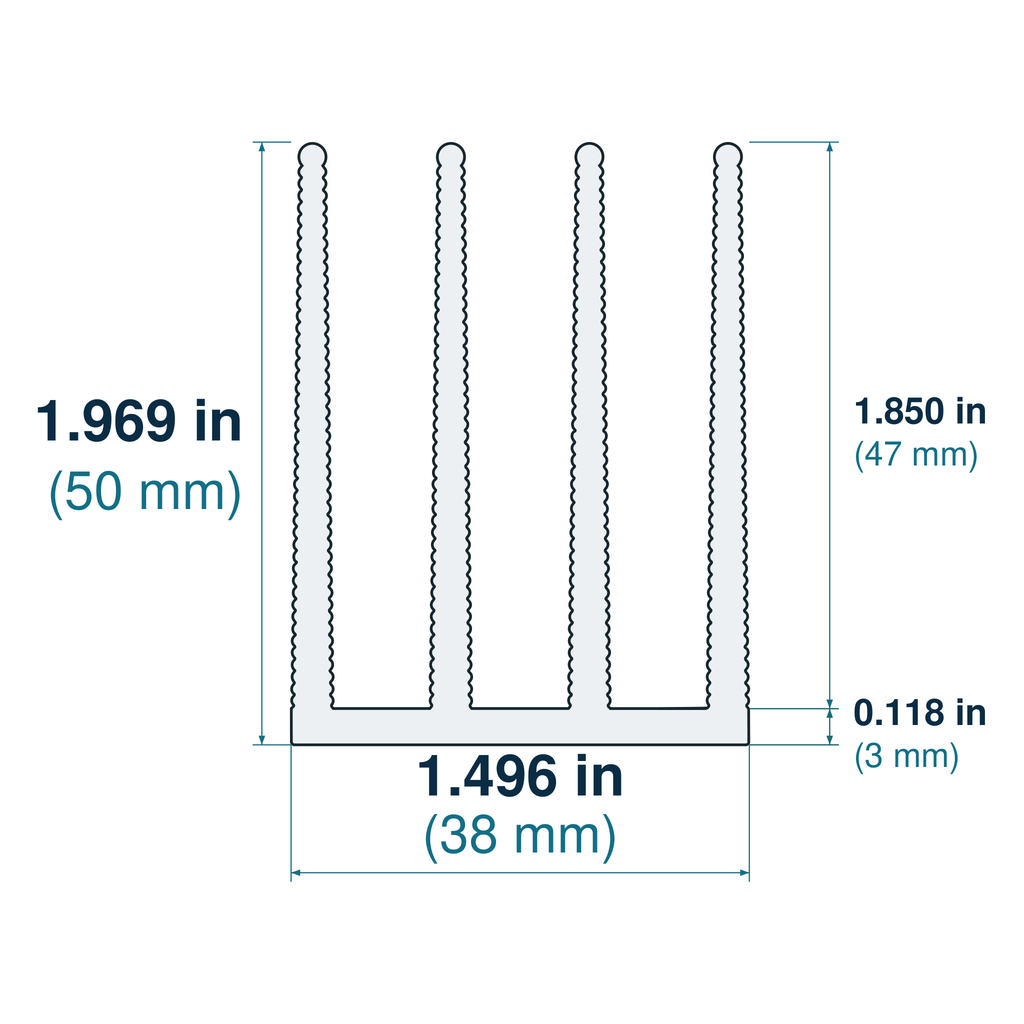

Width
38mm / 1.496''
Height
53mm / 2.087''
Fin Height 50mm / 1.969''
Base Height 3mm / 0.118''
C/W/3''(75mm) Approximate 2.73
Weight 1670gr/m - 0.1lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
