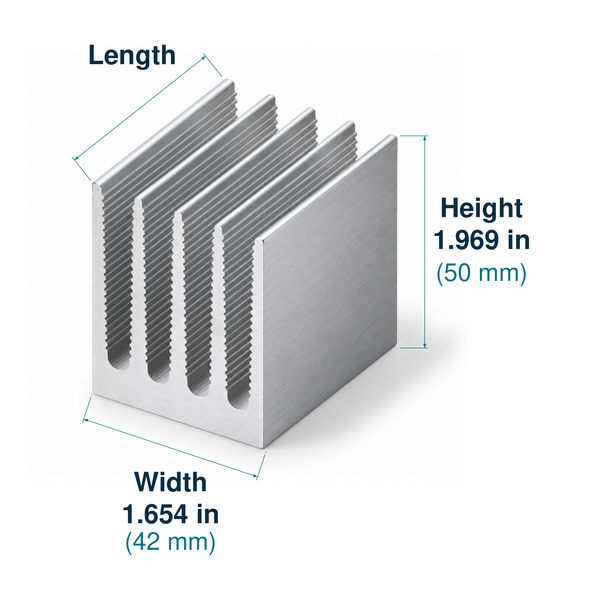

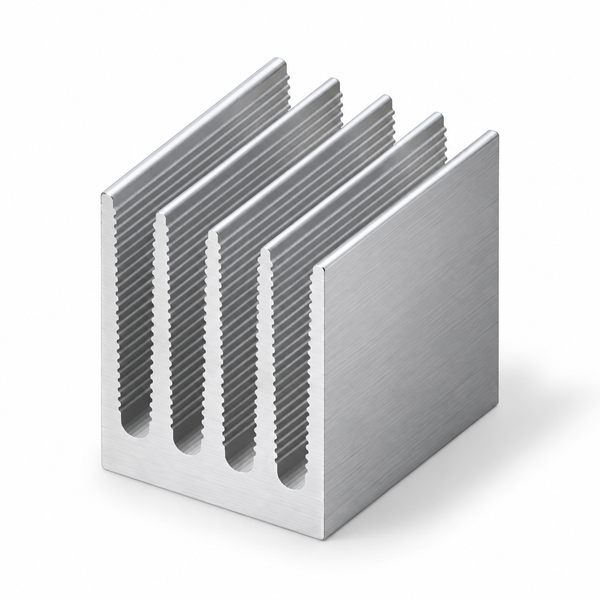

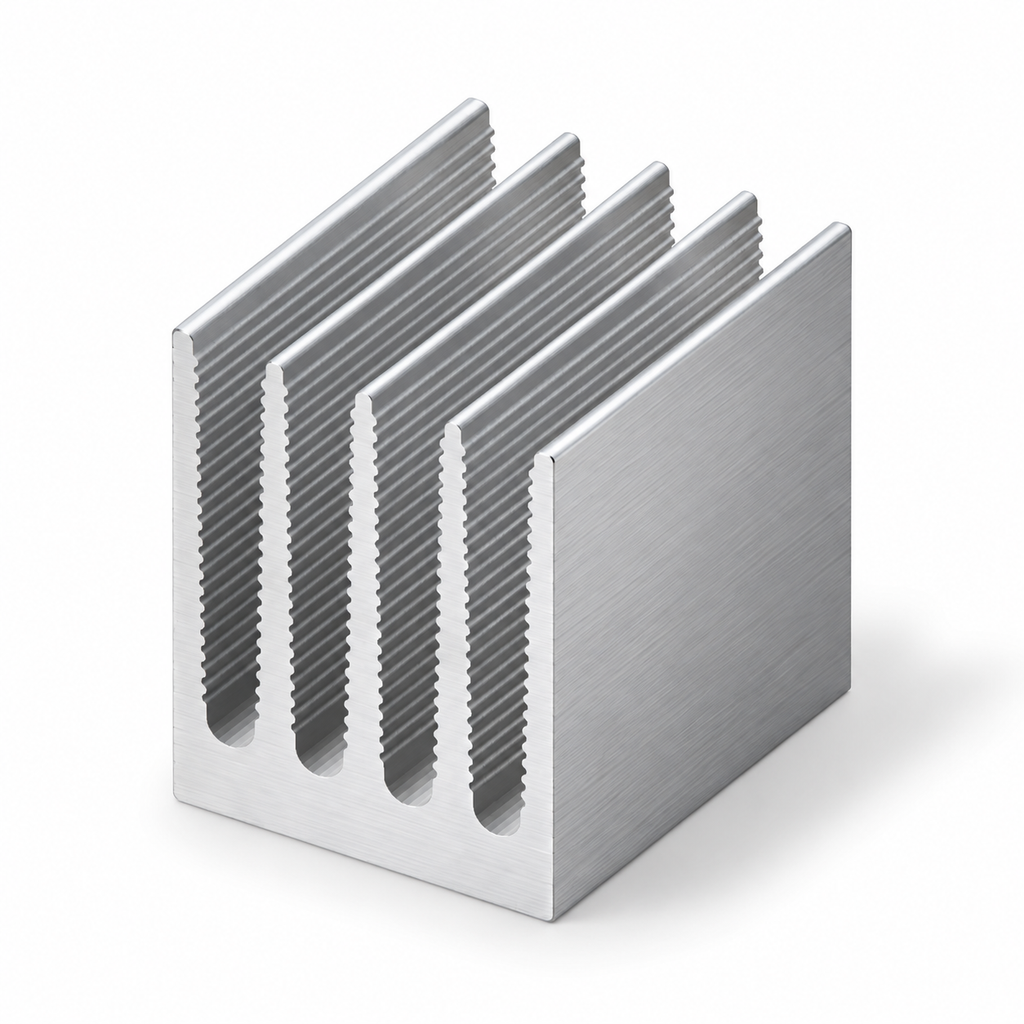

1.654'' (42mm) Wide Heatsink (1353AS)

1.654'' (42mm) Wide Heatsink (1353AS)

Regular price $1.30 $0.00 Unit price per

SKU 1353AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

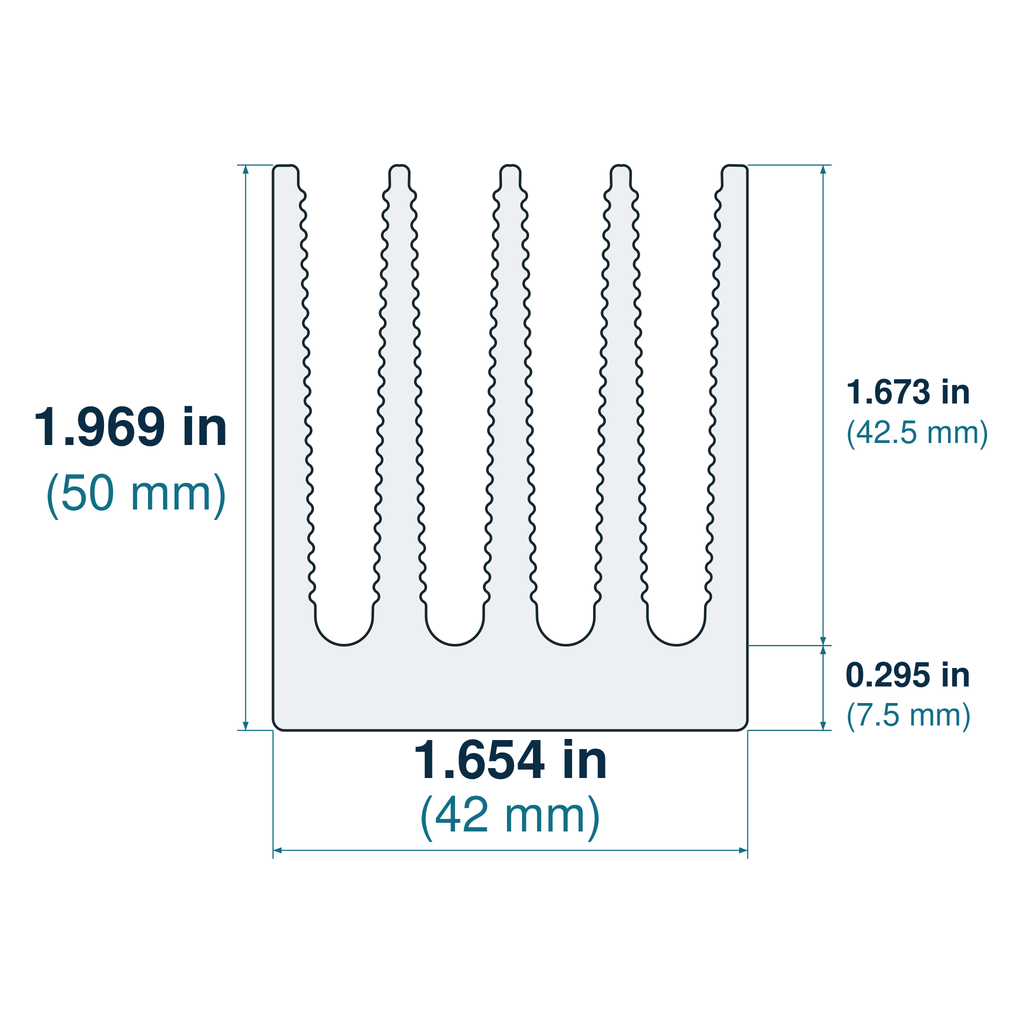

Width
42mm / 1.654''
Height
50mm / 1.969''
Fin Height 42.5mm / 1.673''
Base Height 7.5mm / 0.295''
C/W/3''(75mm) Approximate 2.356
Weight 2750gr/m - 0.16lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
