2.114'' (53.7mm) Wide Heatsink (253AS)

2.114'' (53.7mm) Wide Heatsink (253AS)

Regular price $1.34 $0.00 Unit price per

SKU 253AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

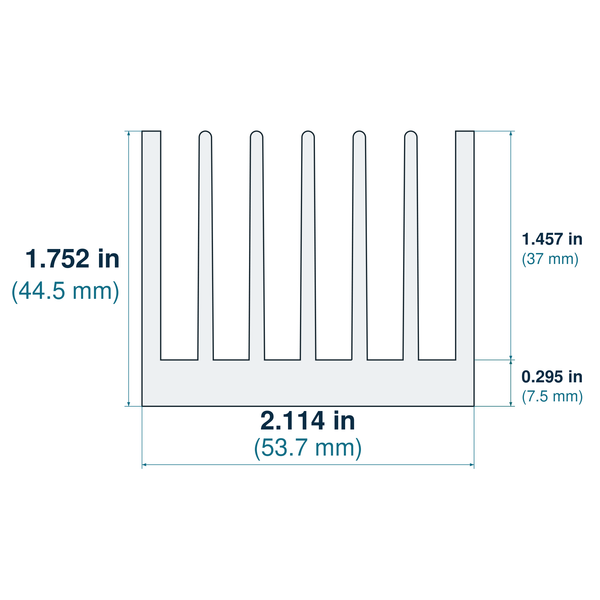

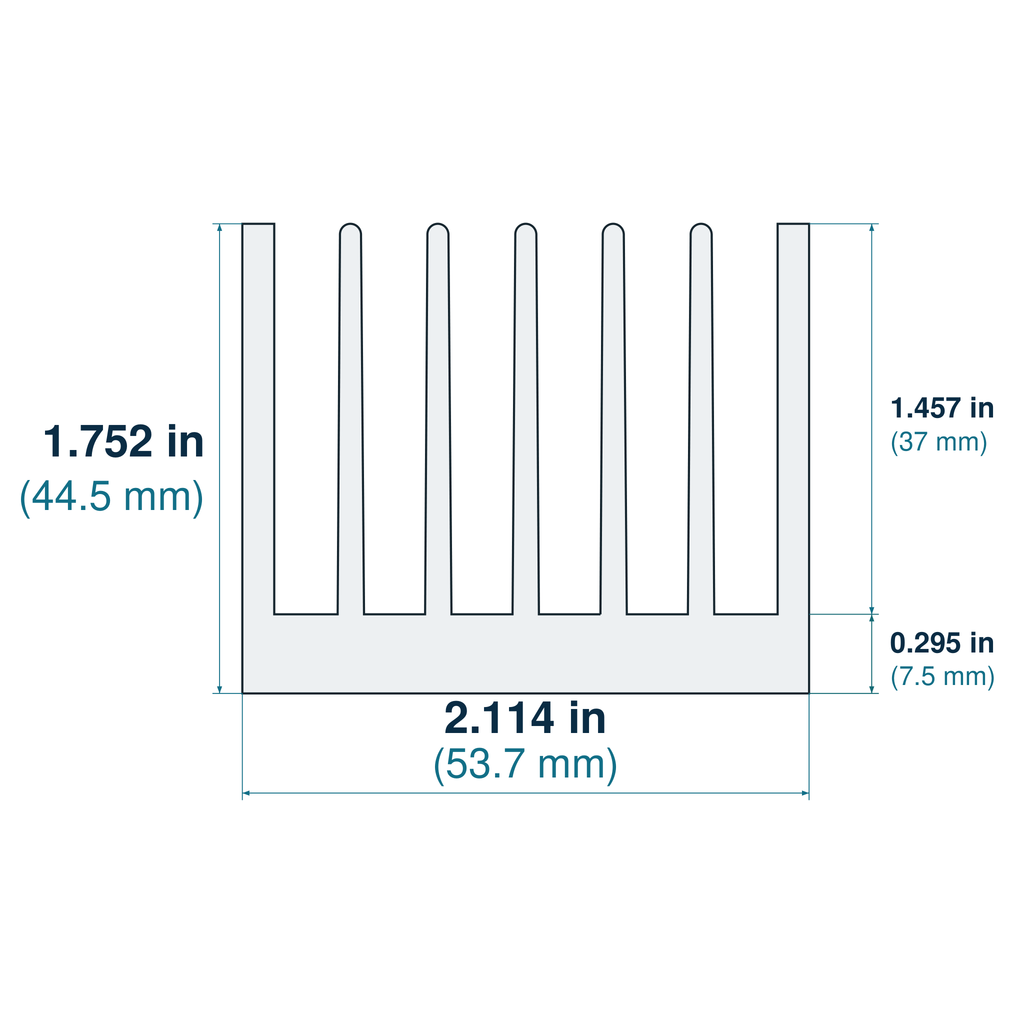

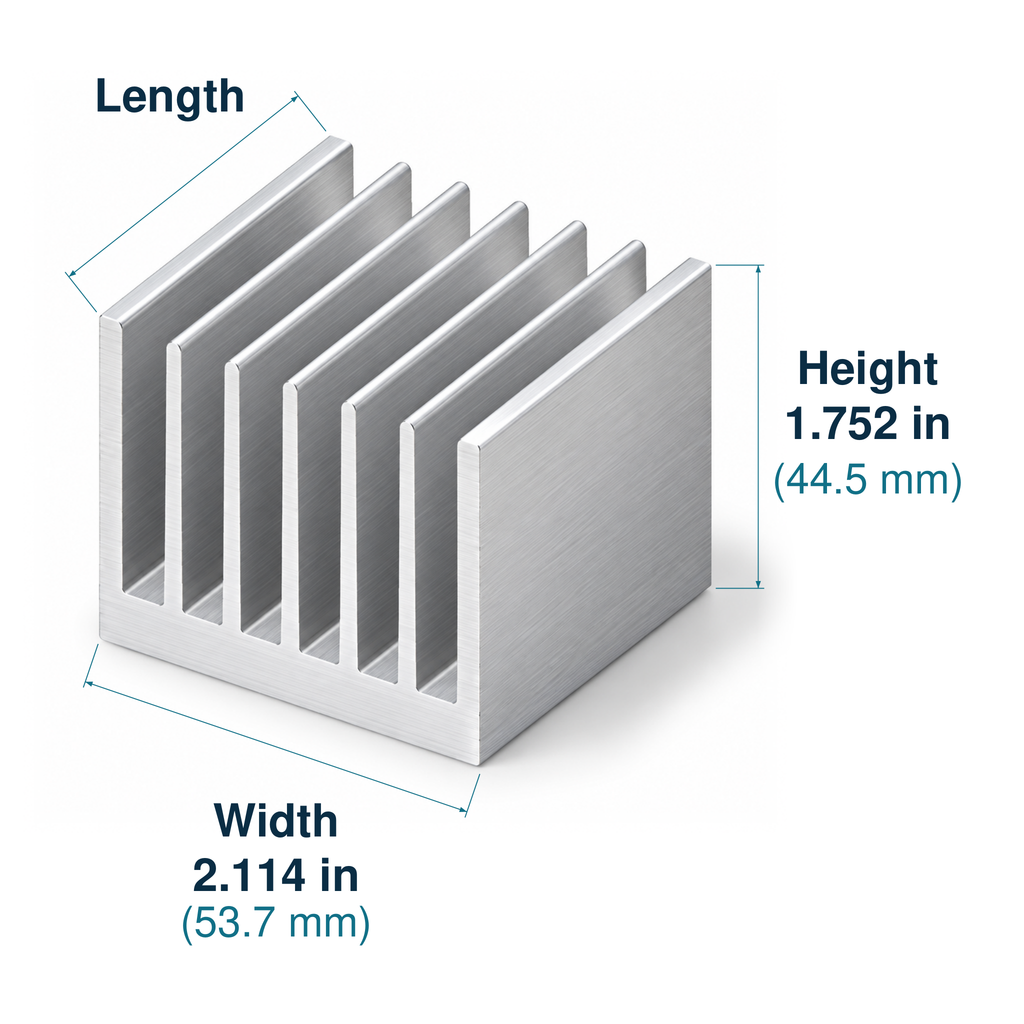

Width
53.7mm / 2.114''
Height
44.5mm / 1.752''
Fin Height 37mm / 1.457''
Base Height 7.5mm / 0.295''
C/W/3''(75mm) Approximate 2.123
Weight 2850gr/m - 0.16lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
