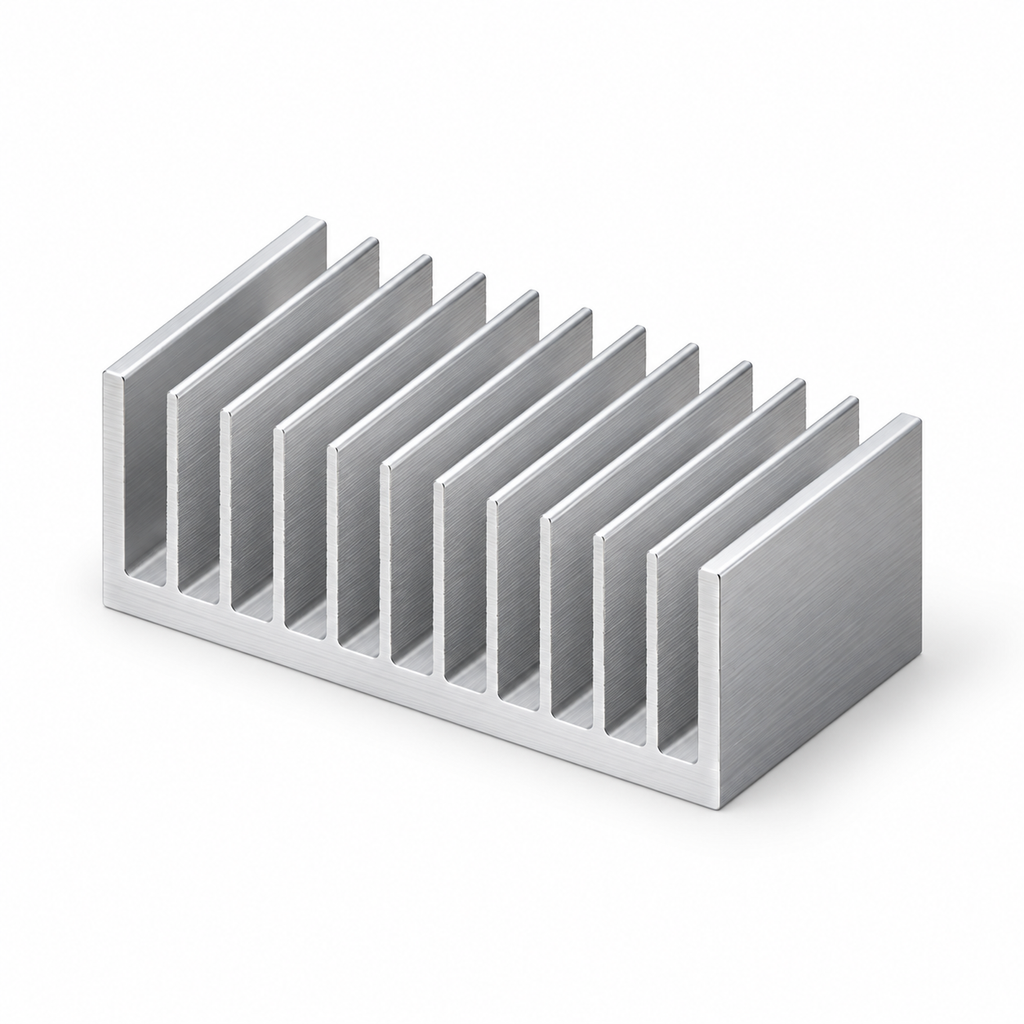

3.937'' (100mm) Wide Heatsink (761AS)

3.937'' (100mm) Wide Heatsink (761AS)

Regular price $1.66 $0.00 Unit price per

SKU 761AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

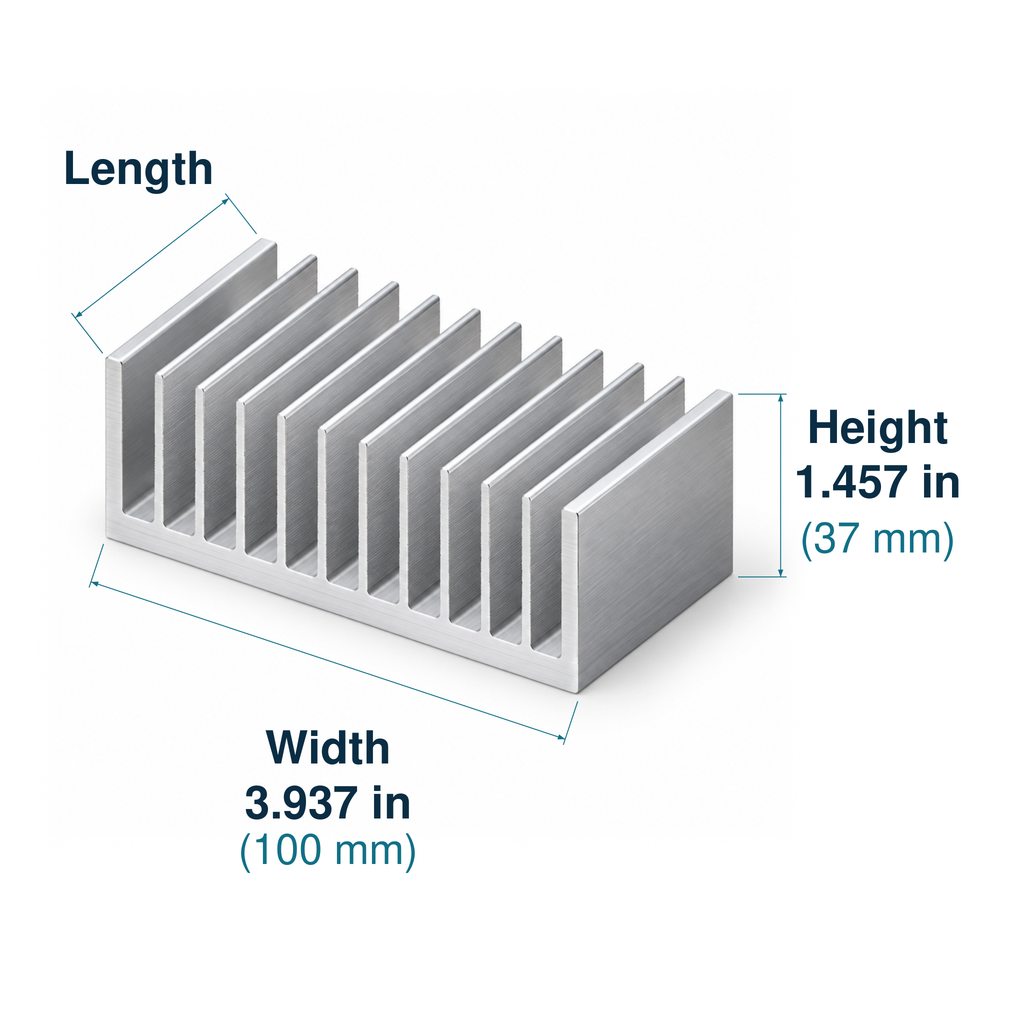

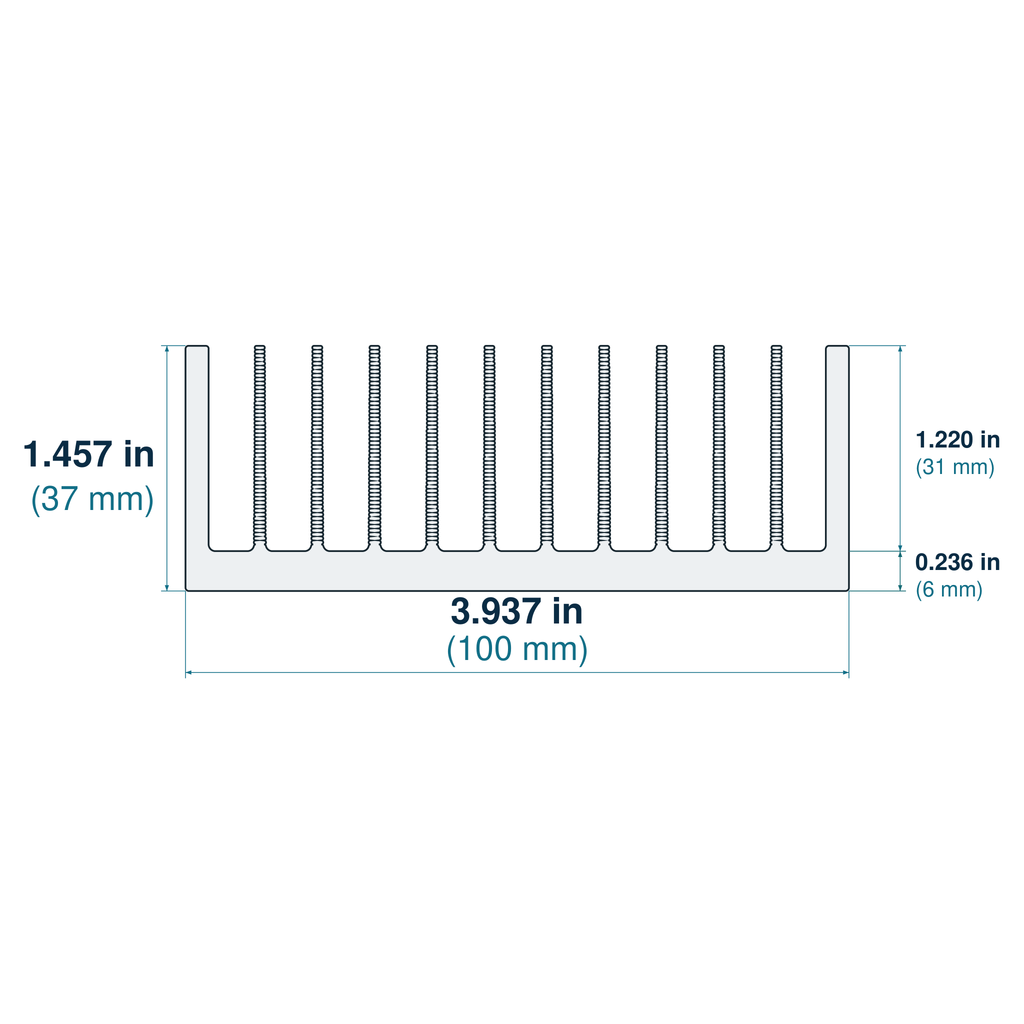

Width
100mm / 3.937''
Height
37mm / 1.457''
Fin Height 31mm / 1.22''
Base Height 6mm / 0.236''
C/W/3''(75mm) Approximate 1.072
Weight 3530gr/m - 0.2lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
