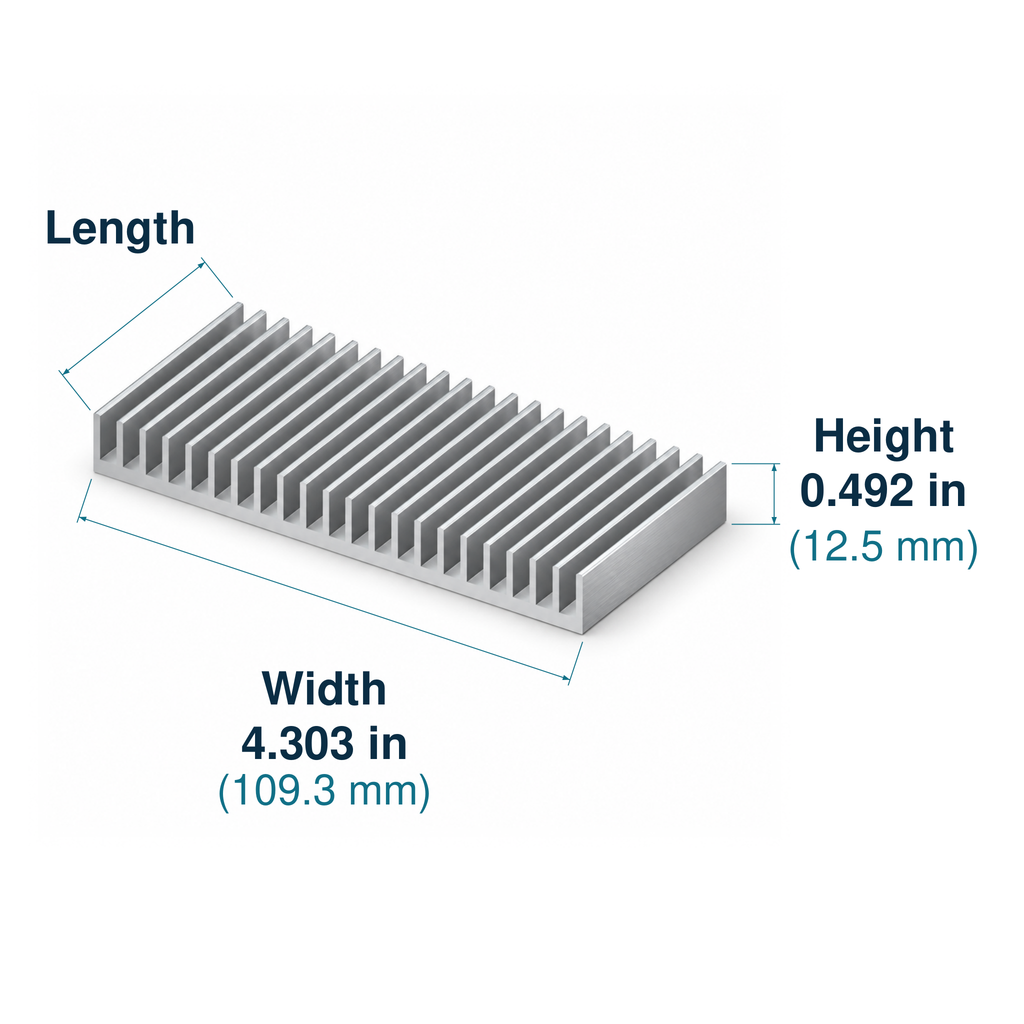

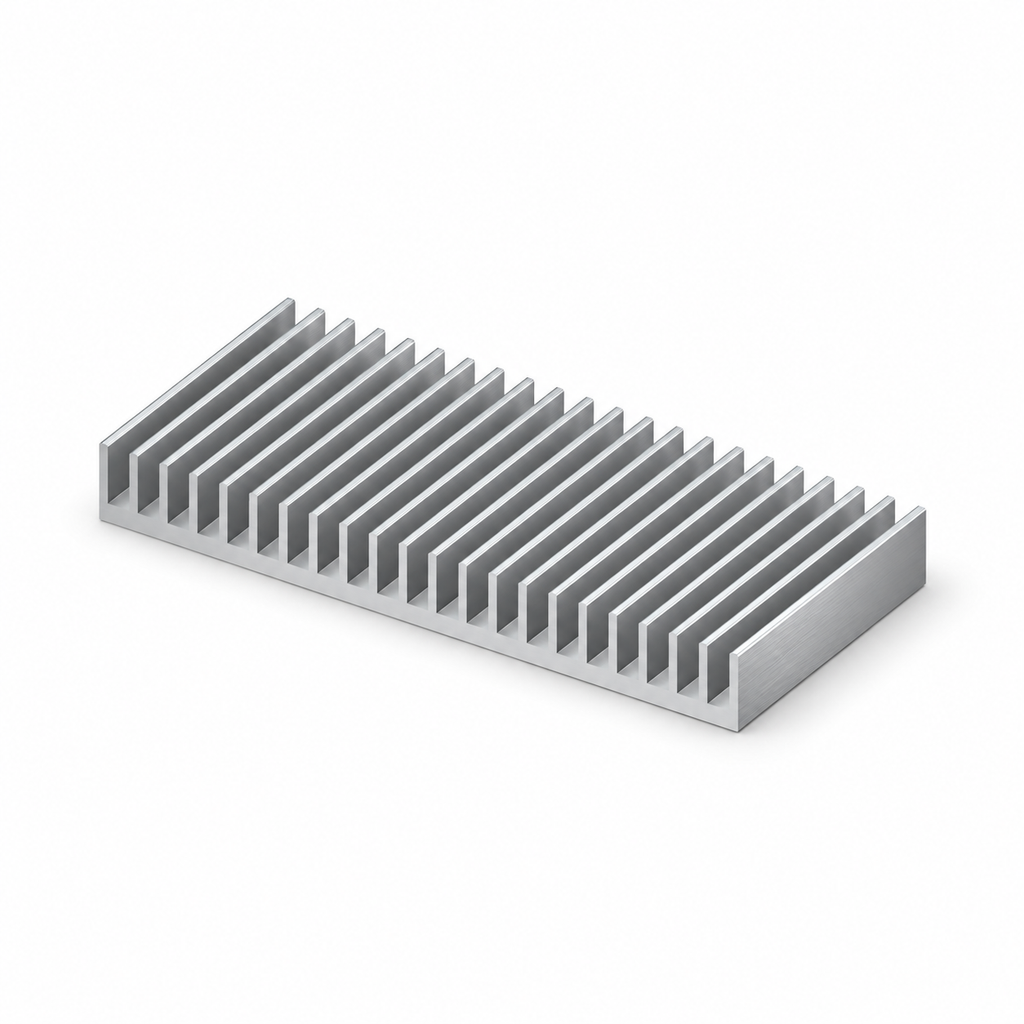

4.303'' (109.3mm) Wide Heatsink (851AS)

4.303'' (109.3mm) Wide Heatsink (851AS)

Regular price $0.80 $0.00 Unit price per

SKU 851AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

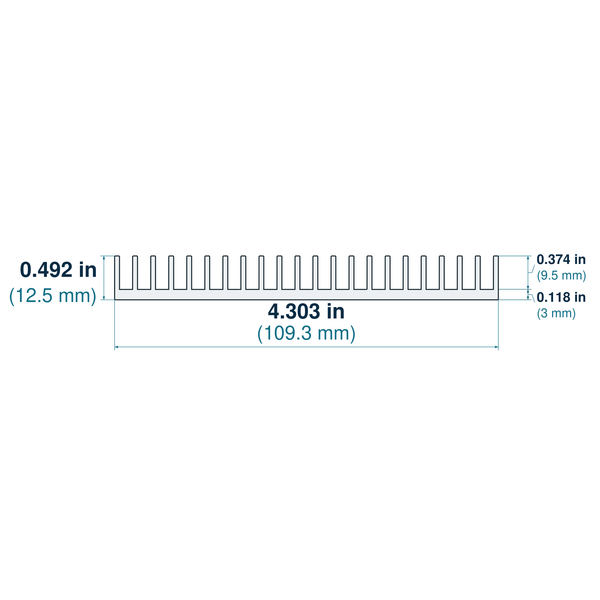

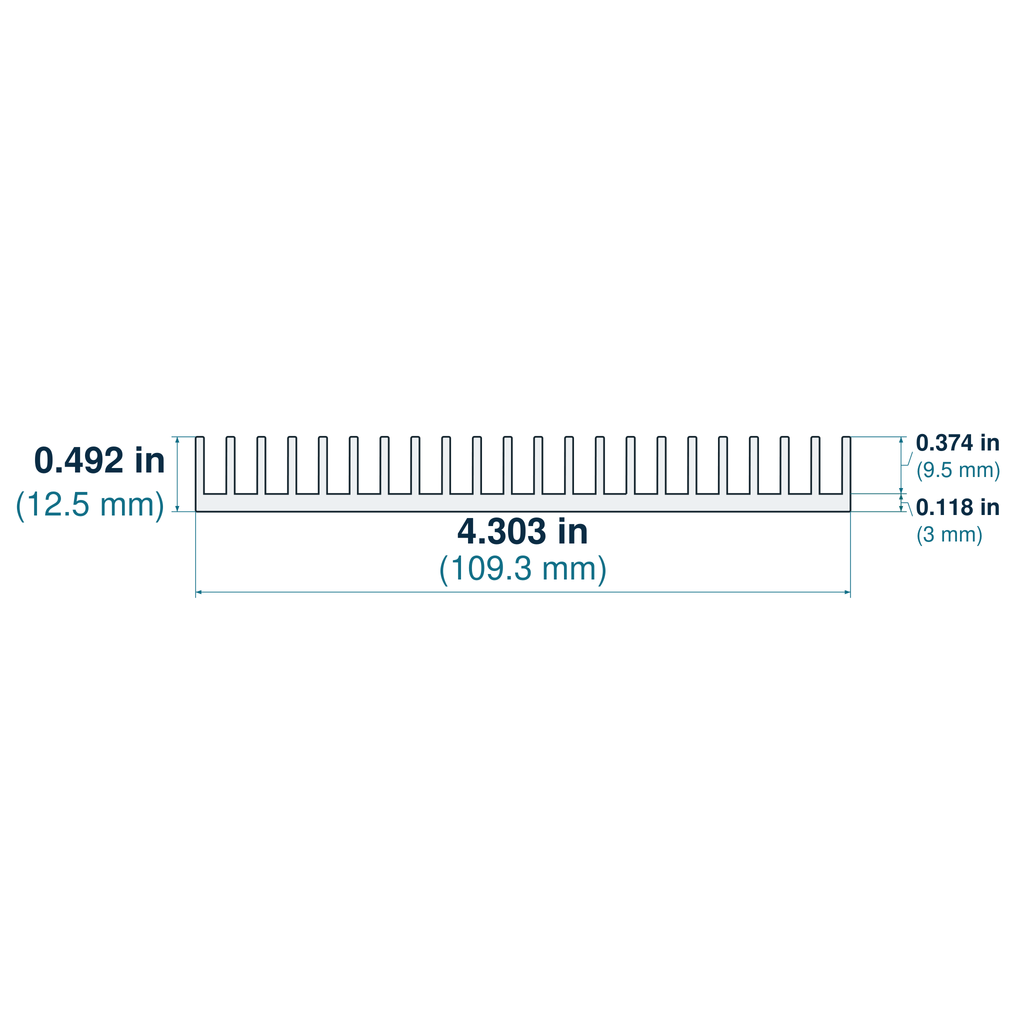

Width
109.3mm / 4.303''
Height
12.5mm / 0.492''
Fin Height 9.5mm / 0.374''
Base Height 3mm / 0.118''
C/W/3''(75mm) Approximate 1.528
Weight 1700gr/m - 0.1lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
