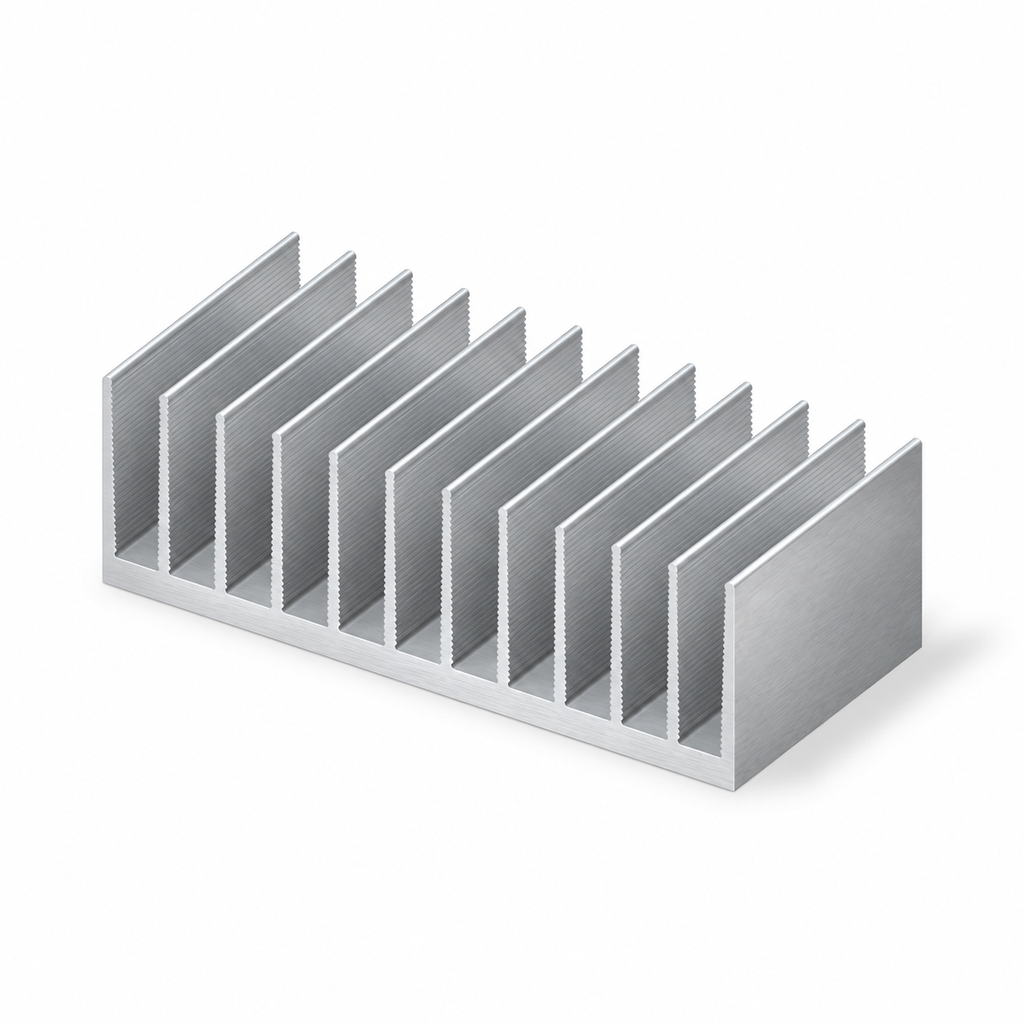

4.331'' (110mm) Wide Heatsink (760AS)

4.331'' (110mm) Wide Heatsink (760AS)

Regular price $1.48 $0.00 Unit price per

Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

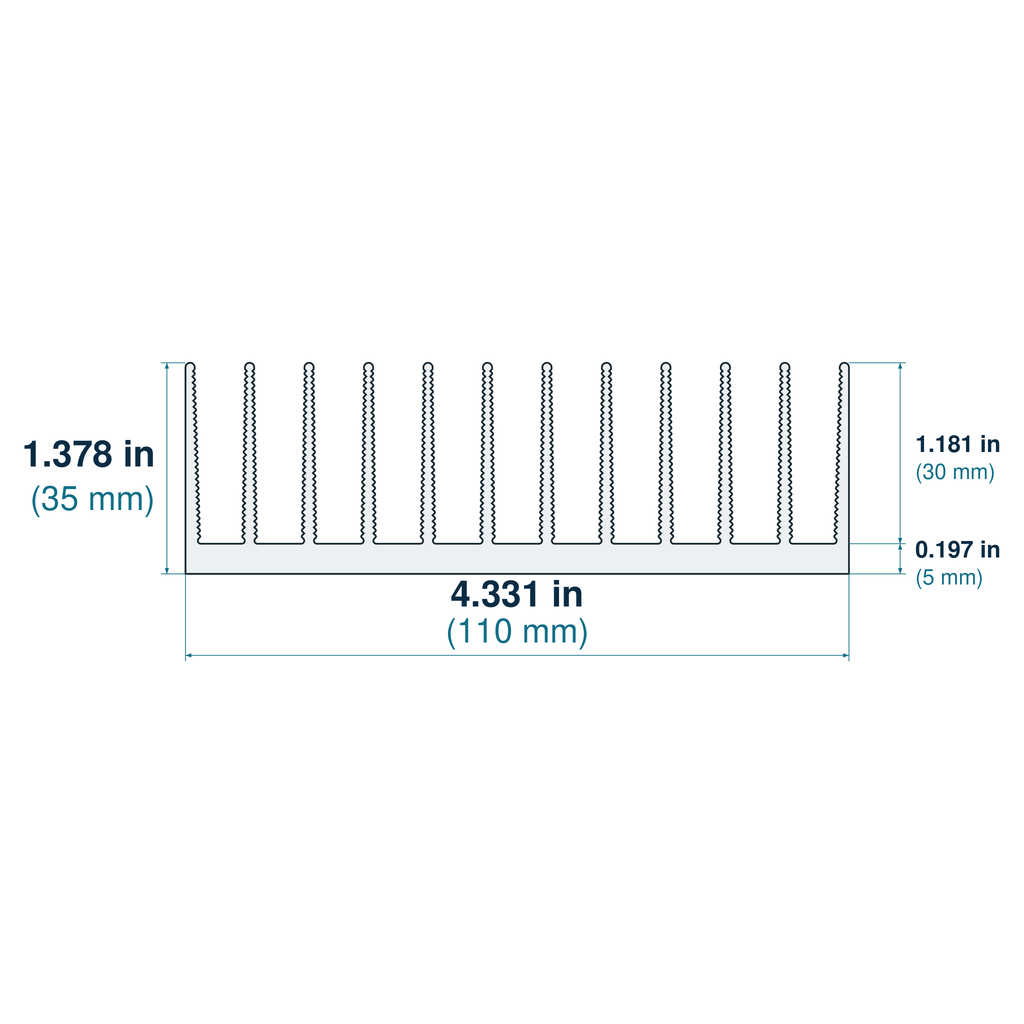

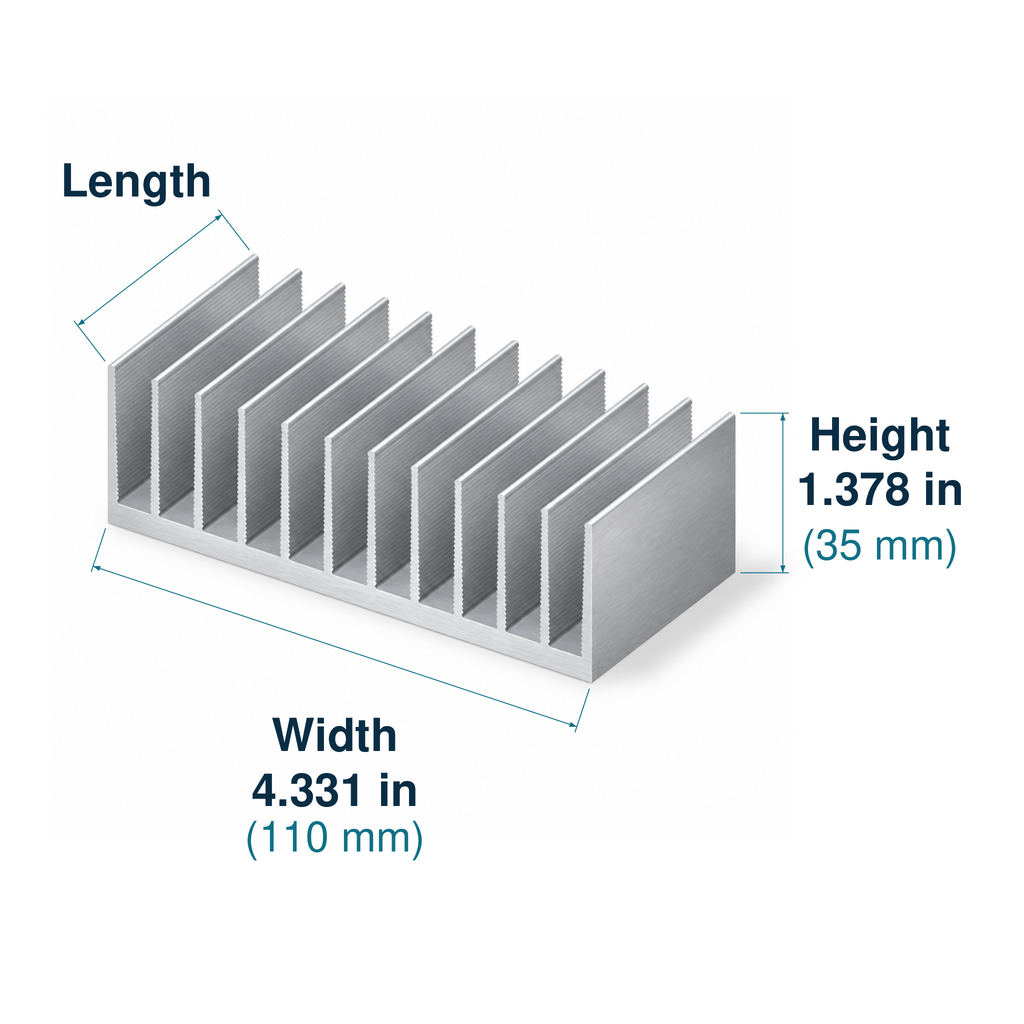

110mm / 4.331''
35mm / 1.378''
Fin Height 30mm / 1.181''
Base Height 5mm / 0.197''
C/W/3''(75mm) Approximate 1.223
Weight 3150gr/m - 0.18lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
