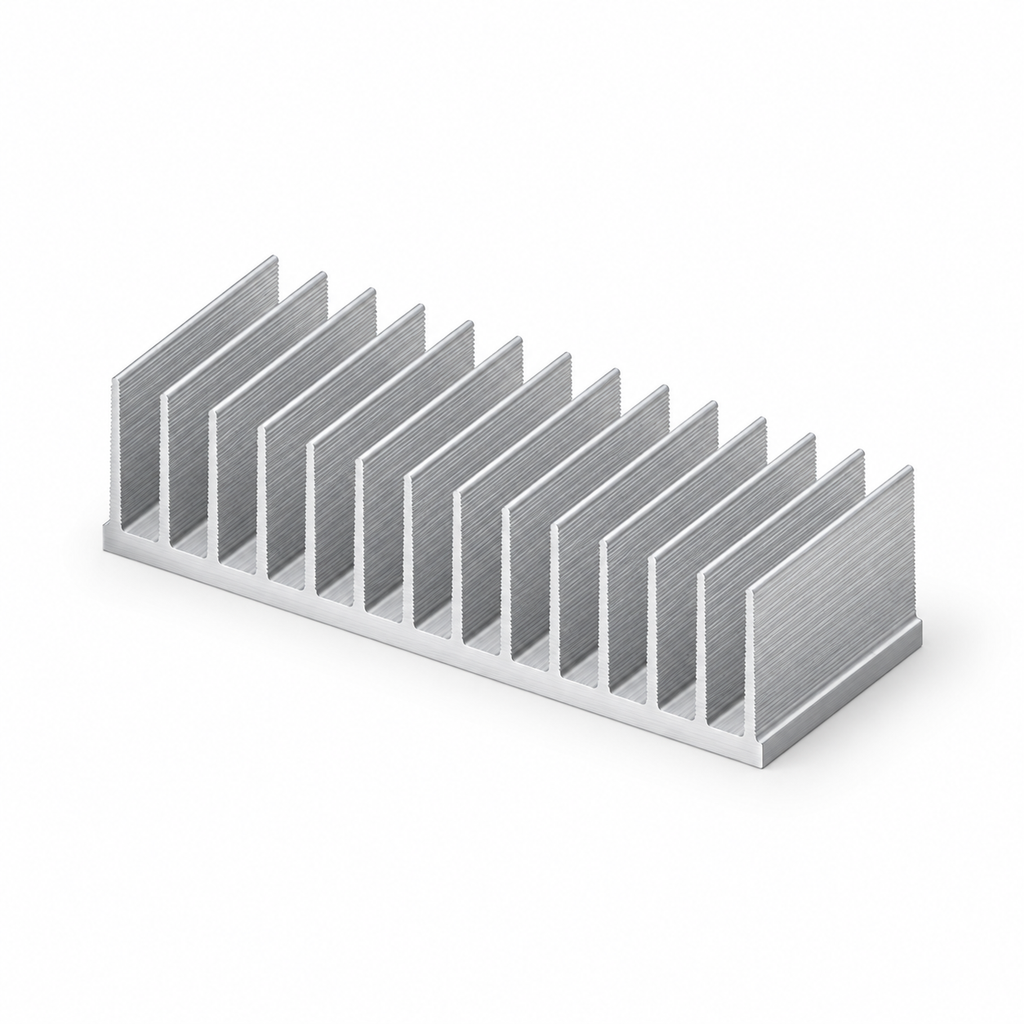

5.315'' (135mm) Wide Heatsink (660AS)
5.315'' (135mm) Wide Heatsink (660AS)

5.315'' (135mm) Wide Heatsink (660AS)

Regular price $1.86 $0.00 Unit price per

OUT OF STOCK



SKU 660AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

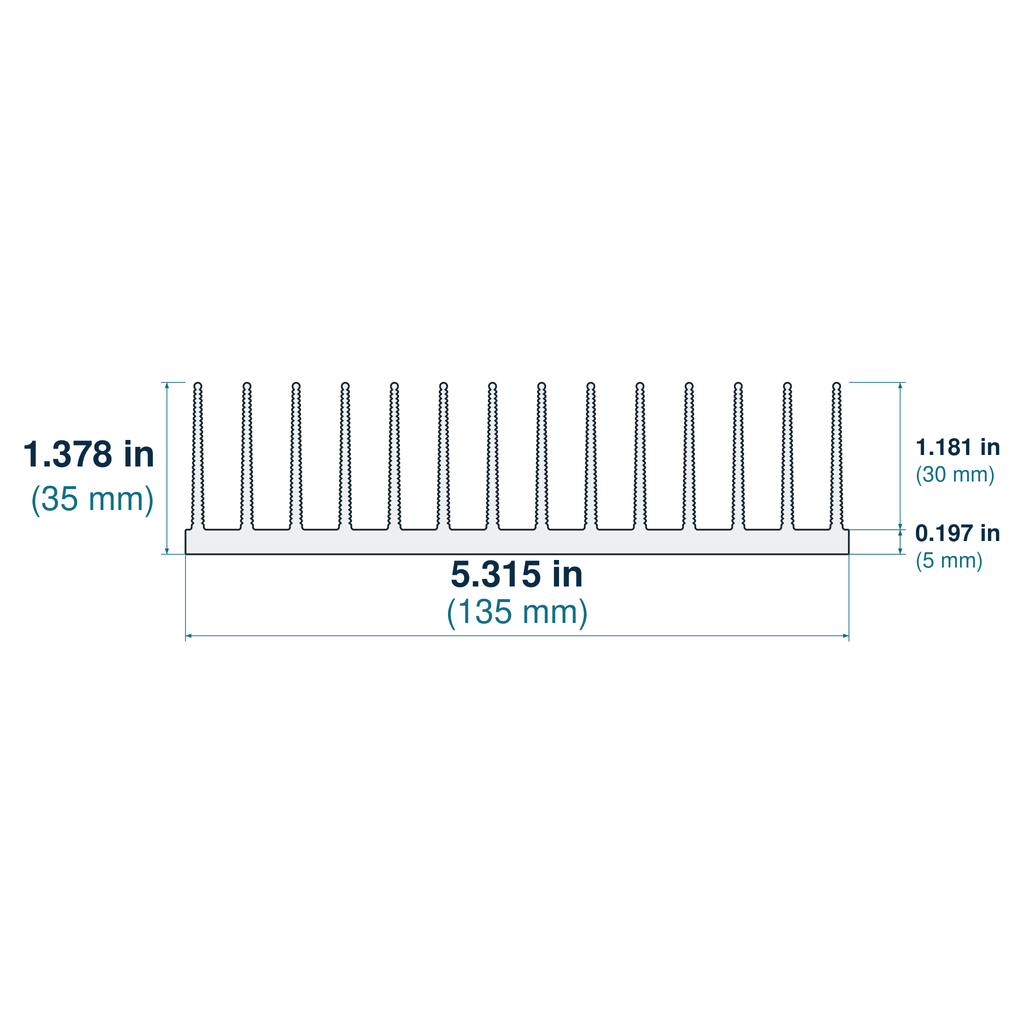

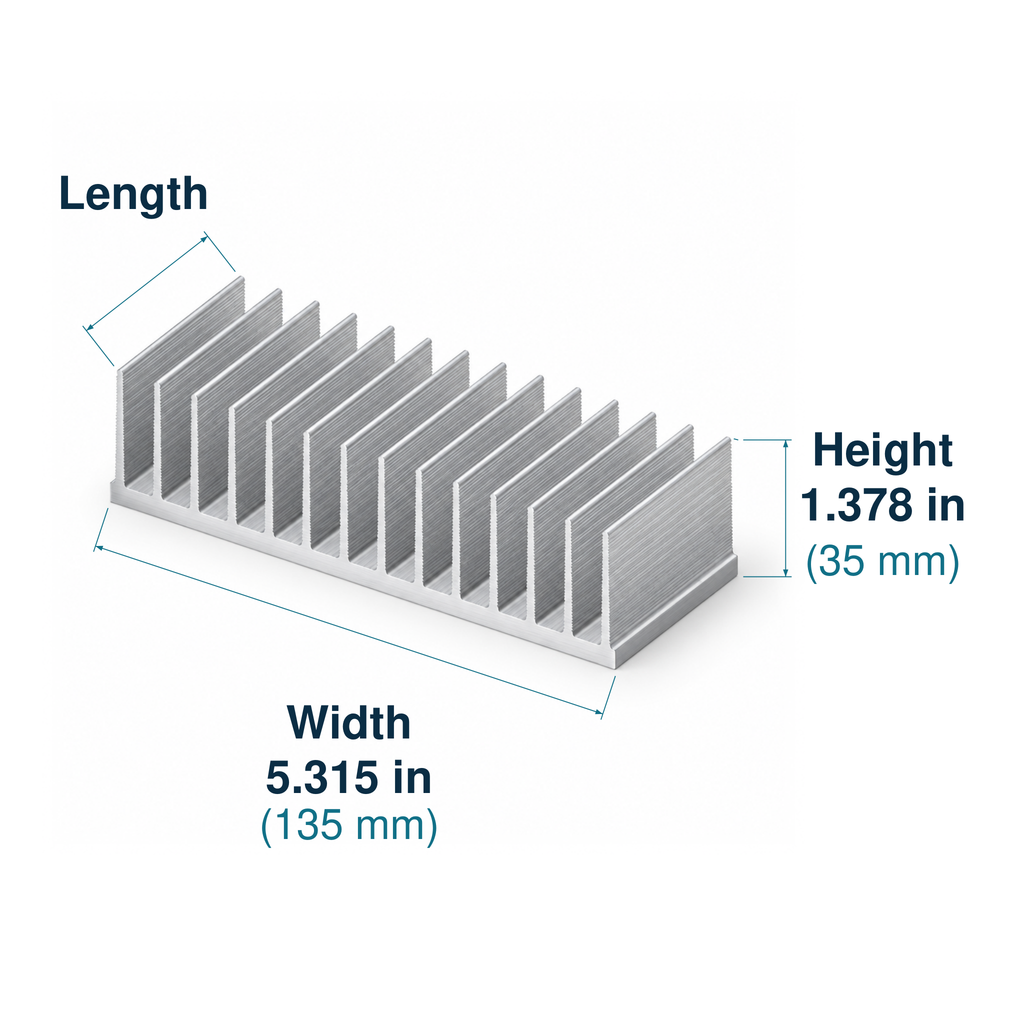

Width 135mm / 5.315''
Height 35mm / 1.378''
Fin Height 30mm / 1.181''
Base Height 5mm / 0.197''
C/W/3''(75mm) Approximate 1.055
Weight 3800gr/m - 0.22lbs/inch


All of our Heatsink Extrusions are stocked as full length (78'' to 118'' depending on the extrusion). We cut to your specified piece length

(inch/mm) per order. We don't charge any cut fee. We have NO Minimum Order. Choose your required piece length from drop-down

above and add your required piece quantity to your Cart. Shipping will be calculated based on Total Weight and your Shipping Address. You'll see available shipping options on checkout.

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
