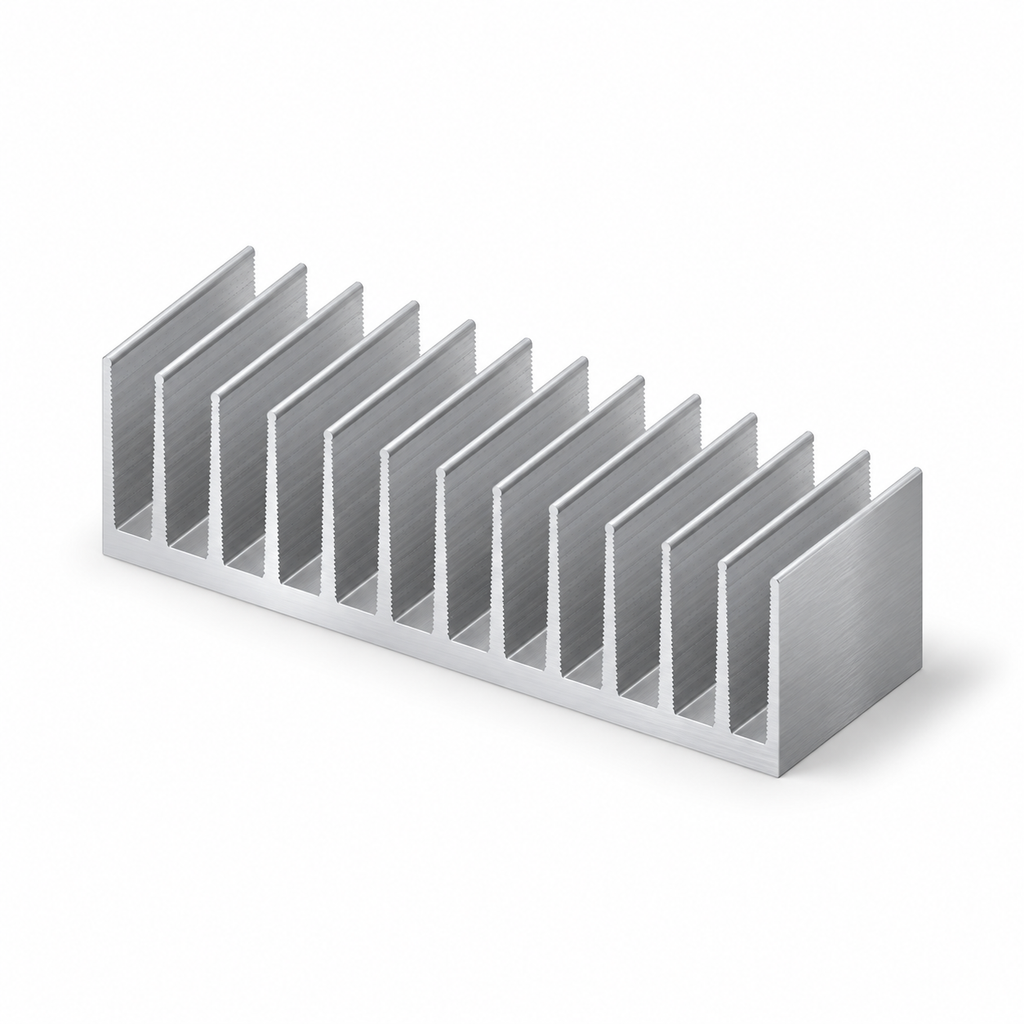

6.083'' (154.5mm) Wide Heatsink (1960AS)

6.083'' (154.5mm) Wide Heatsink (1960AS)

Regular price $2.82 $0.00 Unit price per

SKU 1960AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

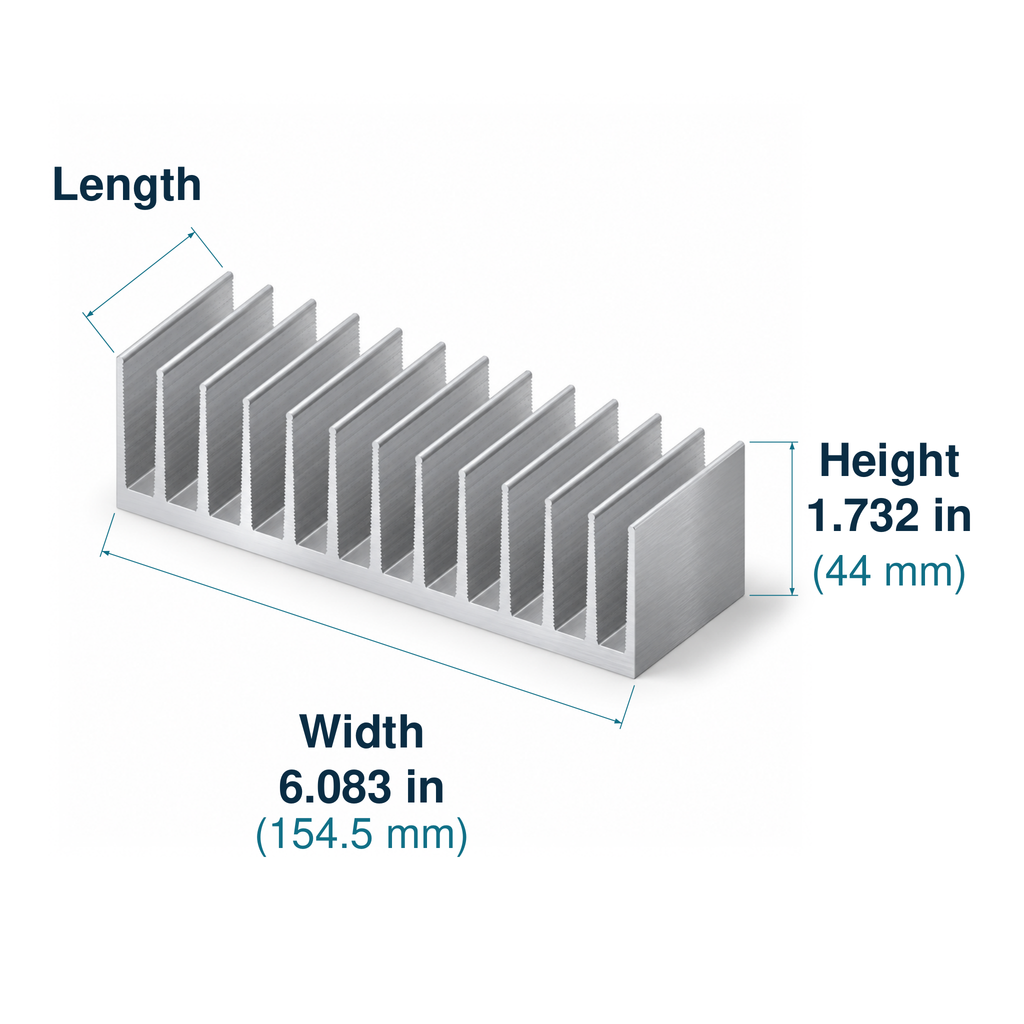

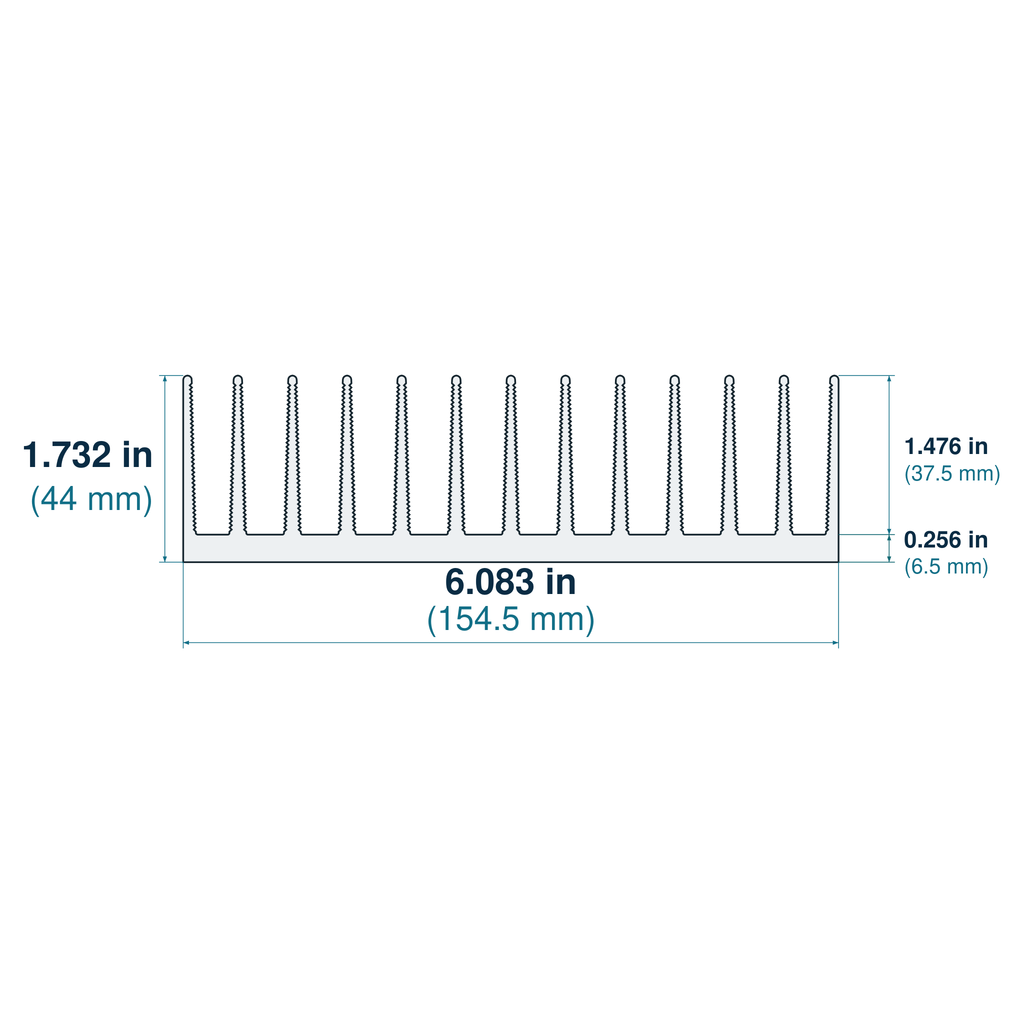

Width
154.5mm / 6.083''
Height
44mm / 1.732''
Fin Height 37.5mm / 1.476''
Base Height 6.5mm / 0.256''
C/W/3''(75mm) Approximate 0.86
Weight 6000gr/m - 0.34lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
