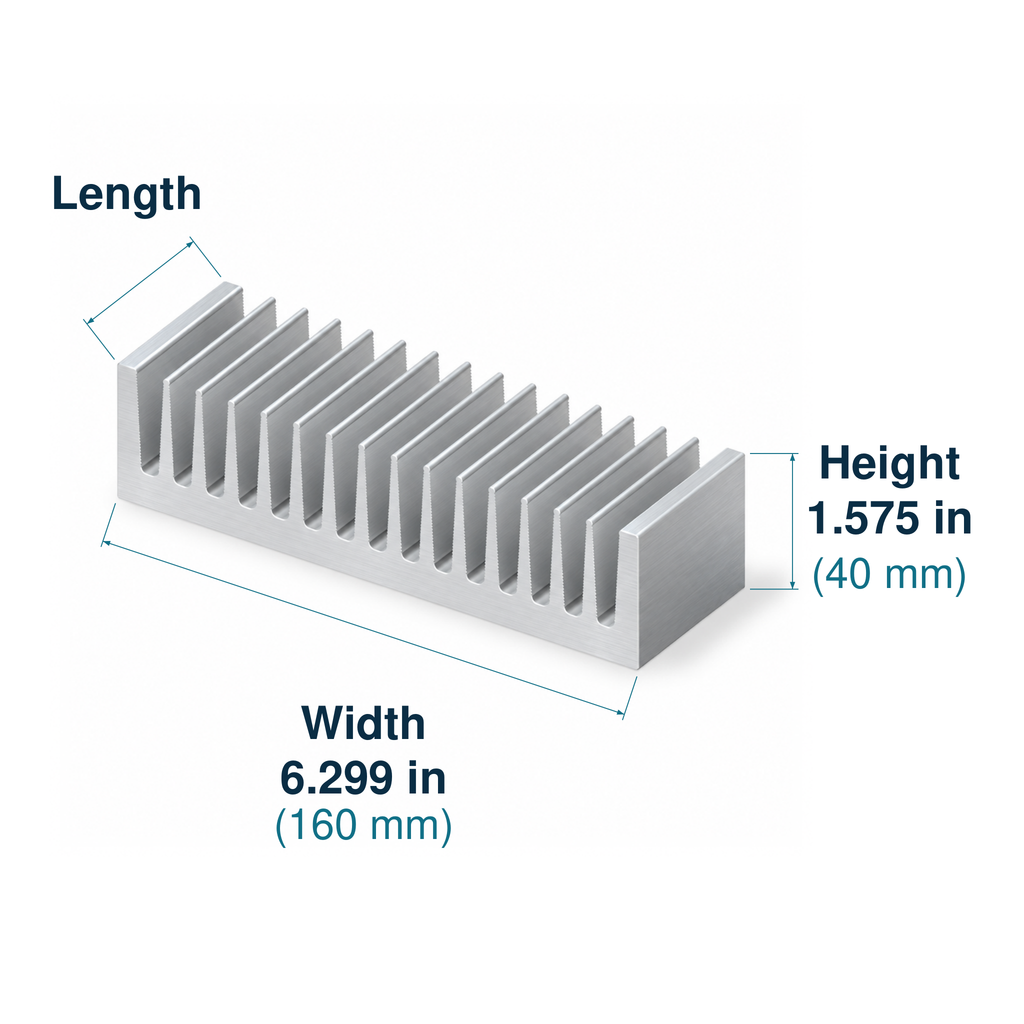

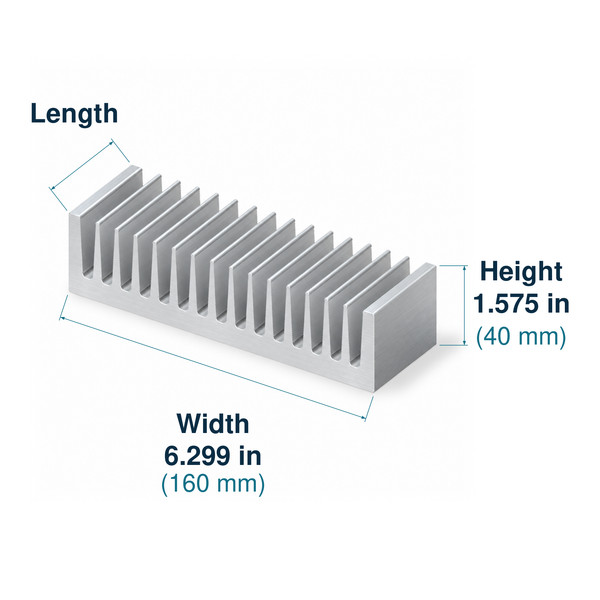

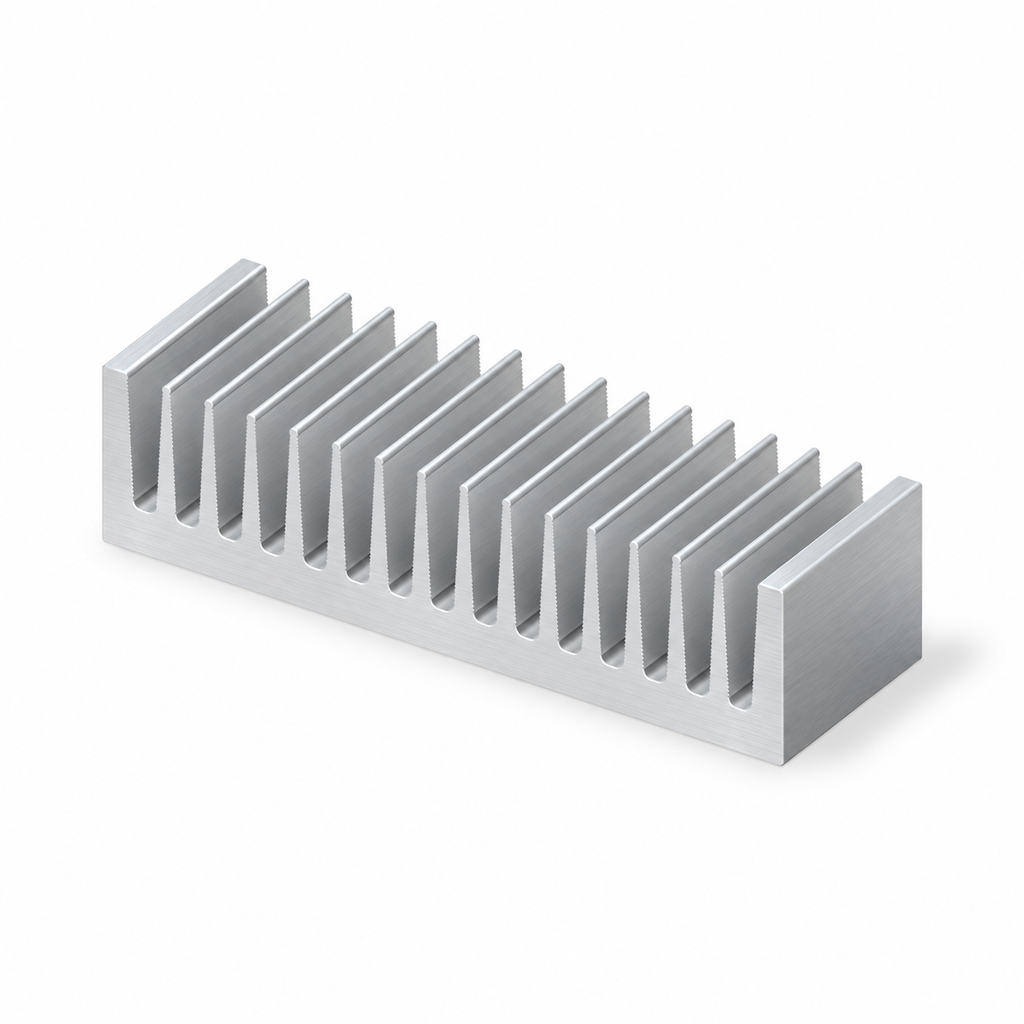

6.299'' (160mm) Wide Heatsink (164AS)

6.299'' (160mm) Wide Heatsink (164AS)

Regular price $4.18 $0.00 Unit price per

SKU 164AS
Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

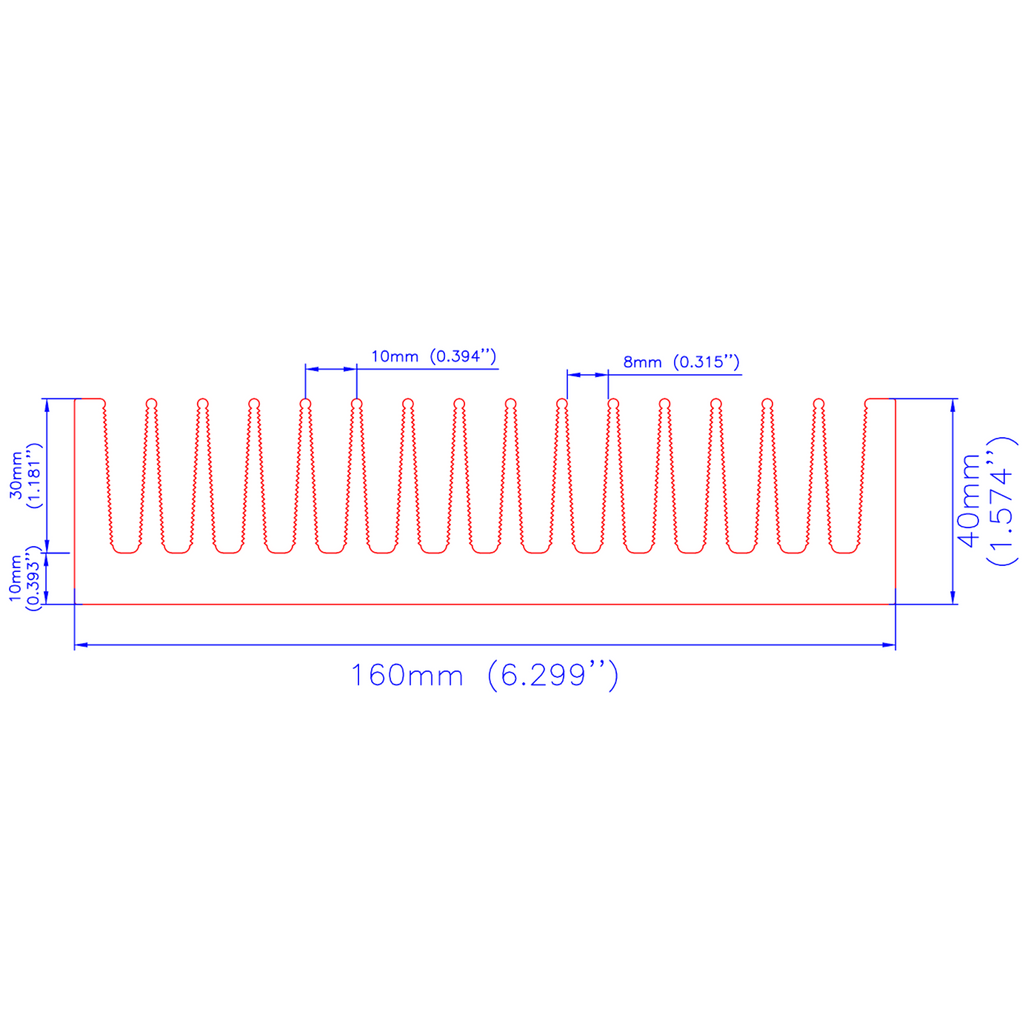

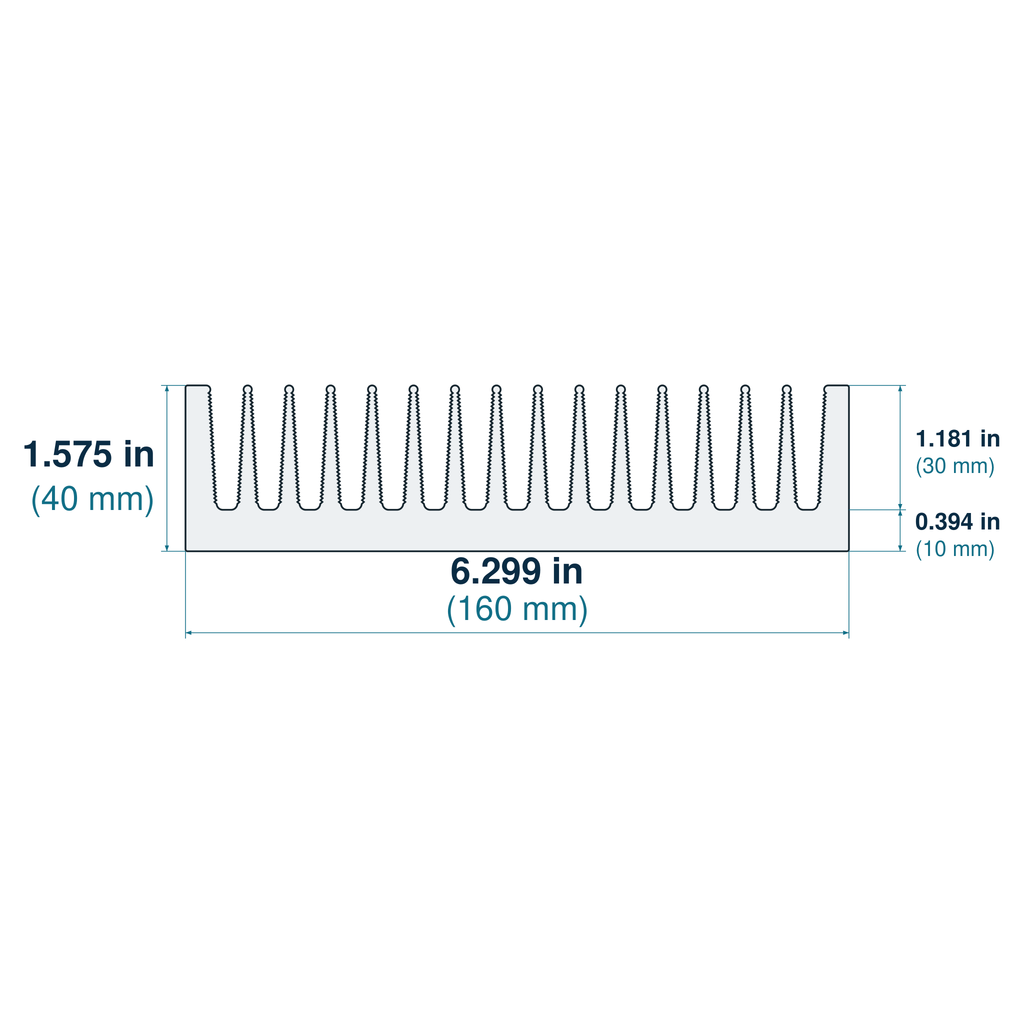

Width
160mm / 6.299''
Height
40mm / 1.575''
Fin Height 30mm / 1.181''
Base Height 10mm / 0.394''
C/W/3''(75mm) Approximate 0.826
Weight 8900gr/m - 0.5lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
