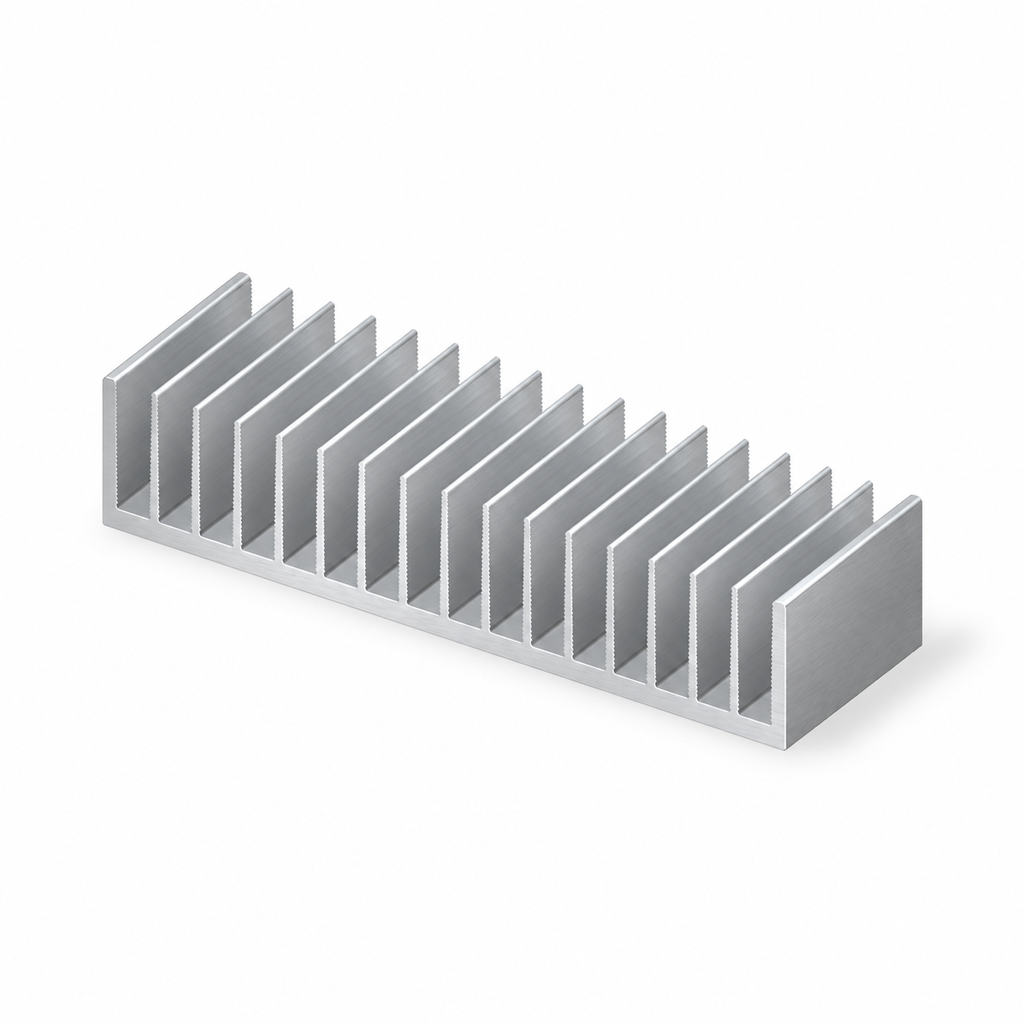

6.496'' (165mm) Wide Heatsink (260AS)
6.496'' (165mm) Wide Heatsink (260AS)

6.496'' (165mm) Wide Heatsink (260AS)

Regular price $2.35 $0.00 Unit price per

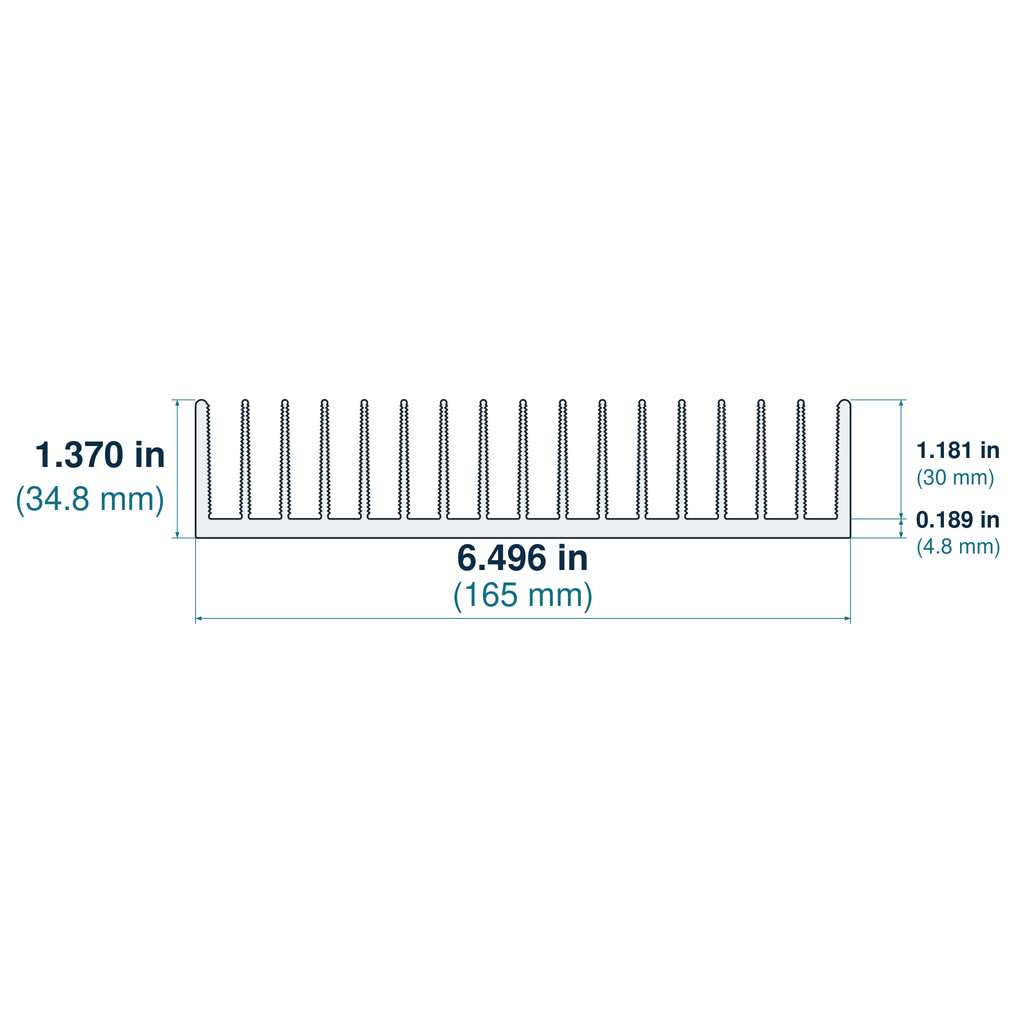

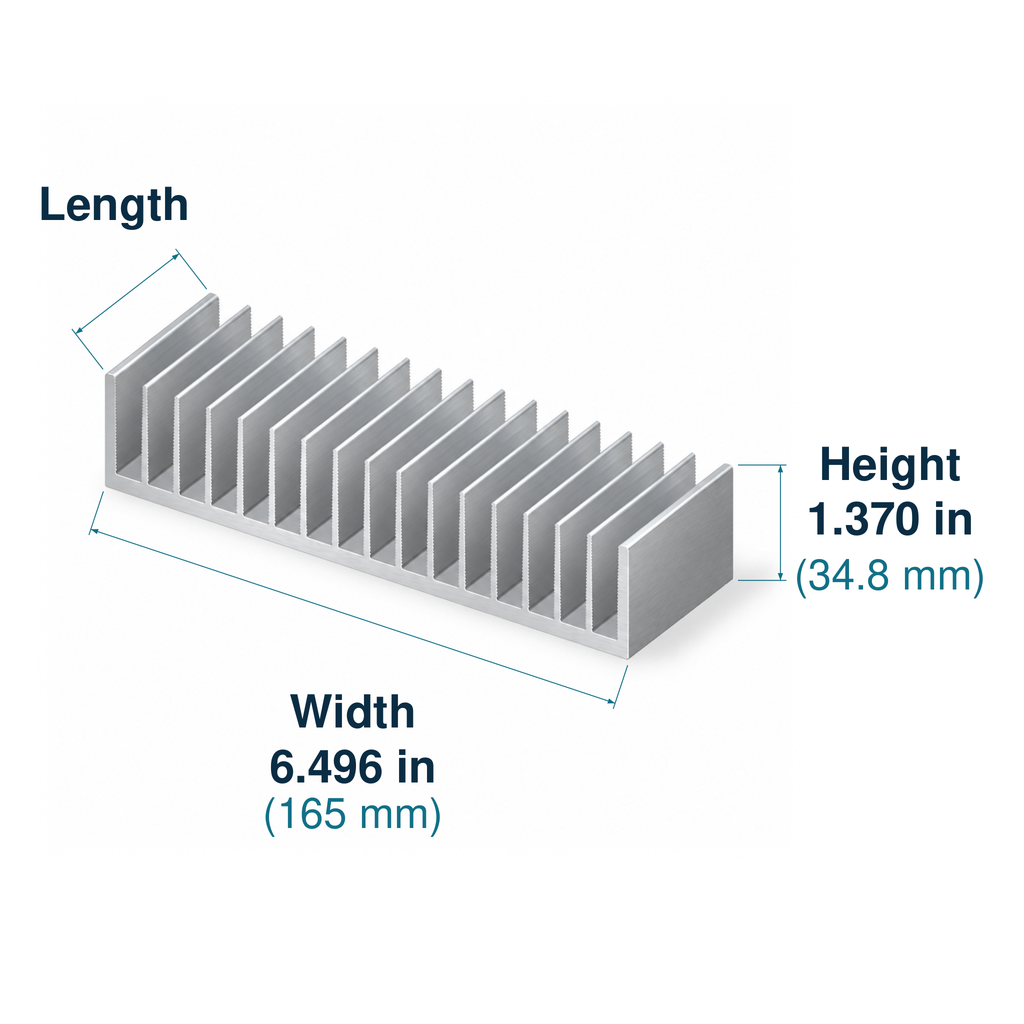

Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)
165mm / 6.496''
34.8mm / 1.37''
Fin Height 30mm / 1.181''
Base Height 4.8mm / 0.189''
C/W/3''(75mm) Approximate 0.79
Weight 5000gr/m - 0.28lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
