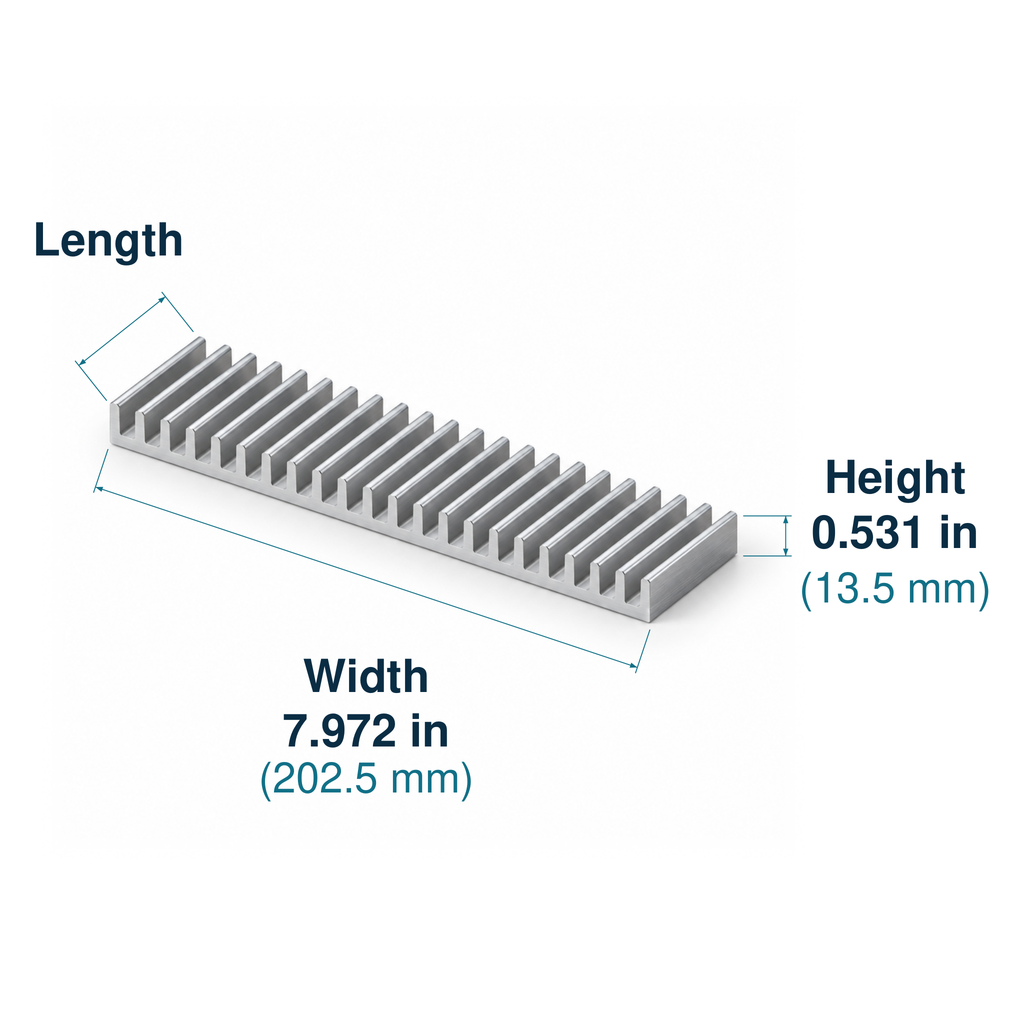

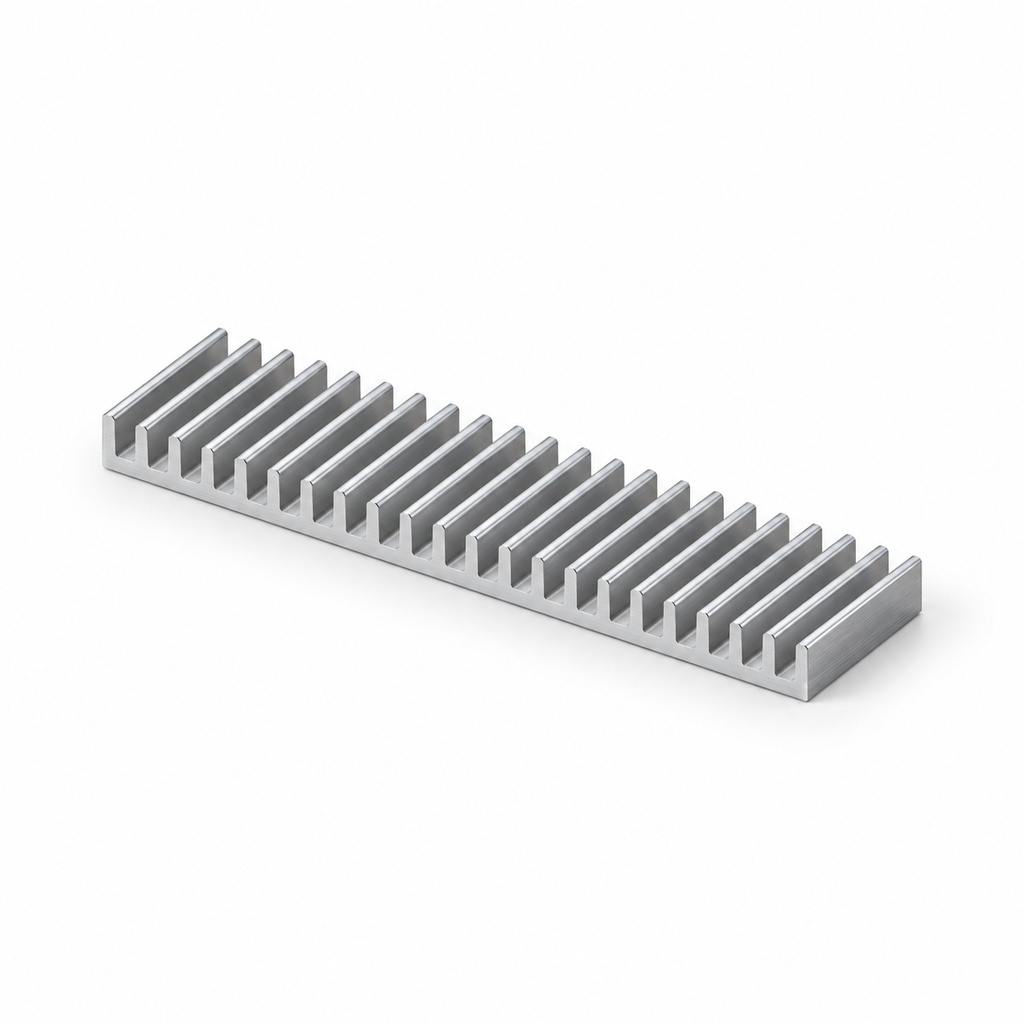

7.972'' (202.5mm) Wide Heatsink (161AS)
7.972'' (202.5mm) Wide Heatsink (161AS)

7.972'' (202.5mm) Wide Heatsink (161AS)

Regular price $1.77 $0.00 Unit price per

Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

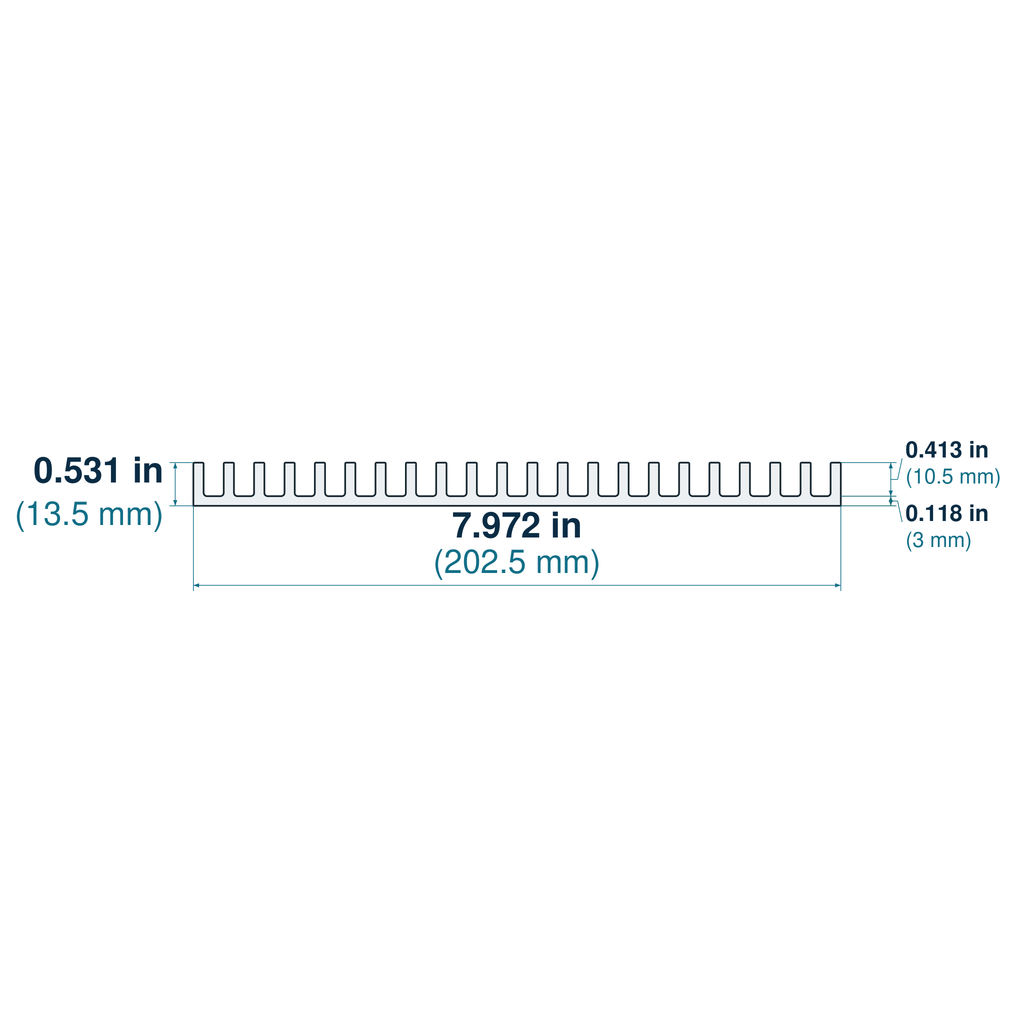

202.5mm / 7.972''
13.5mm / 0.531''
Fin Height 10.5mm / 0.413''
Base Height 3mm / 0.118''
C/W/3''(75mm) Approximate 1.854
Weight 3750gr/m - 0.21lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
