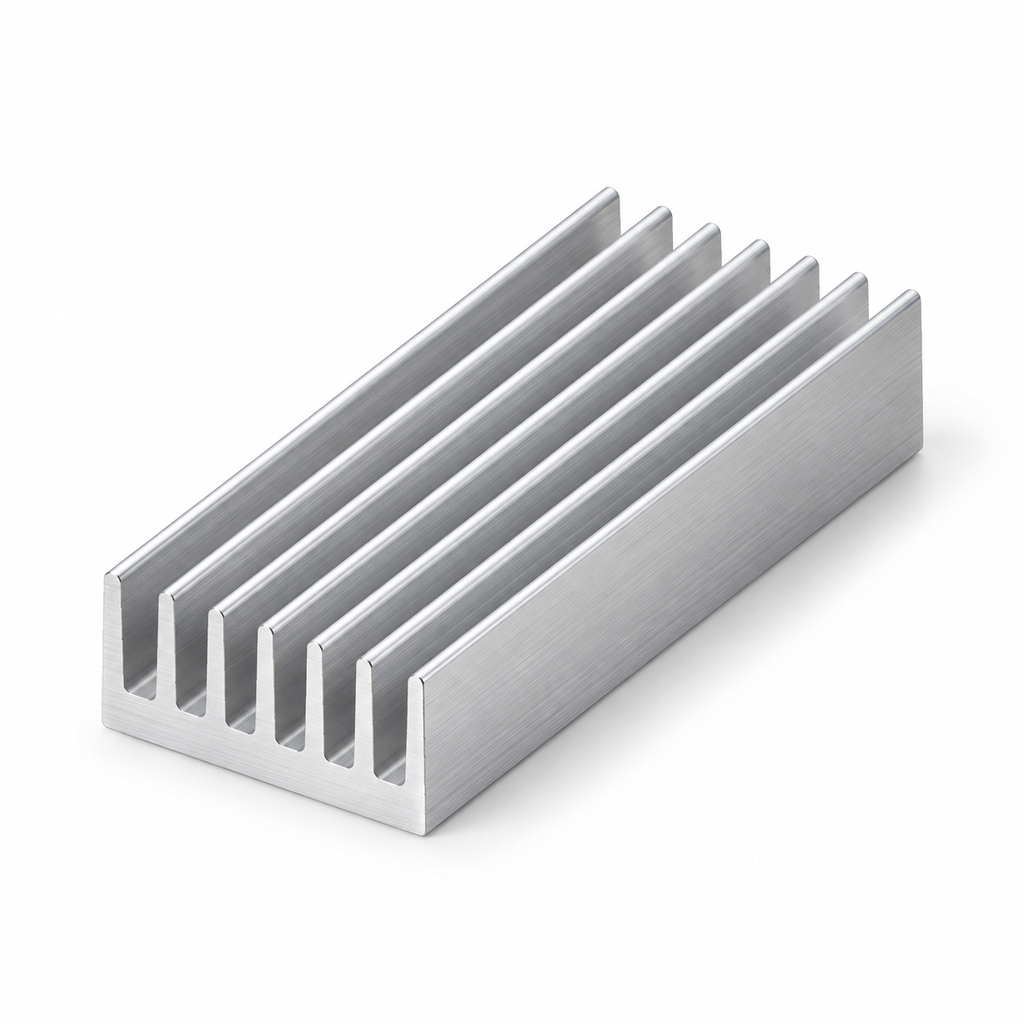

0.827'' (21mm) Wide Heatsink (821AS)

0.827'' (21mm) Wide Heatsink (821AS)

Regular price $0.15 $0.00 Unit price per

Type Heatsink Extrusion
Material Aluminum 6063-T5
Surface Finish Mill Finish (Non-Anodized)

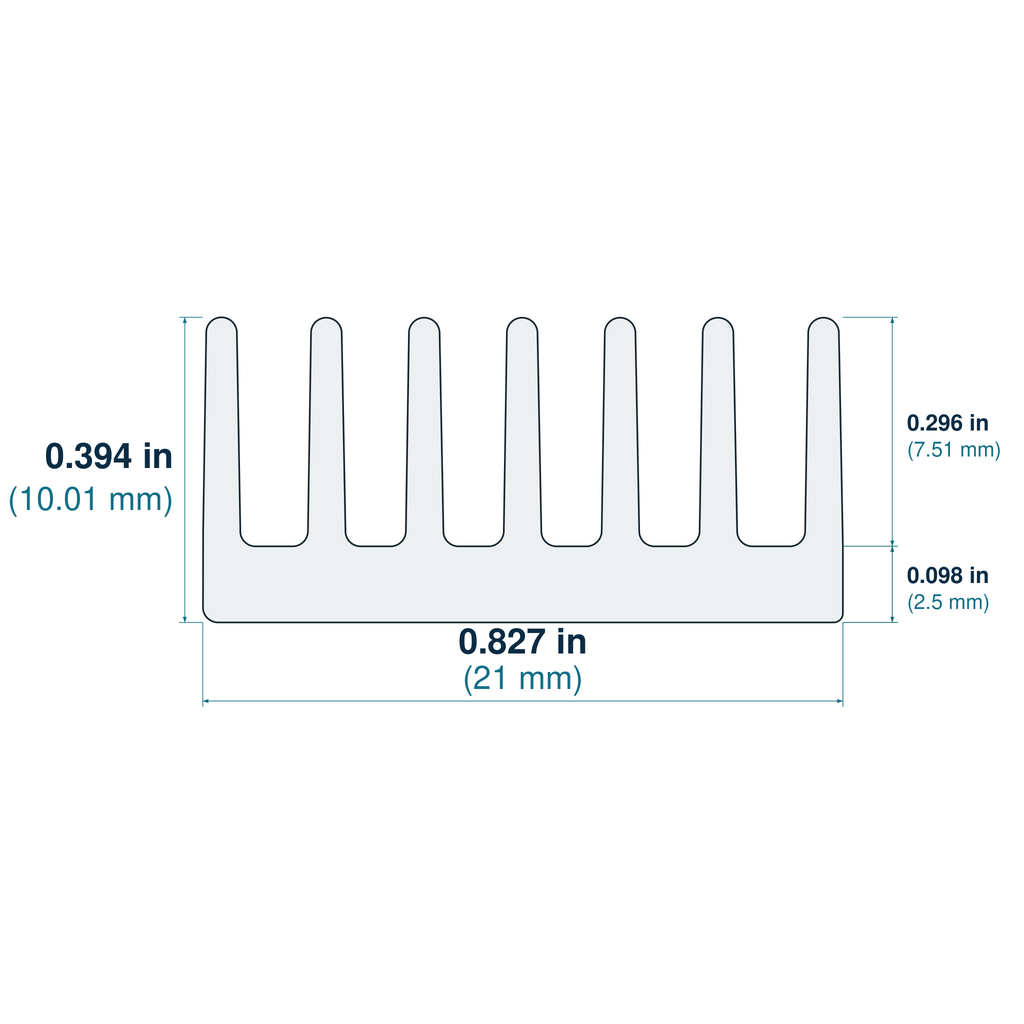

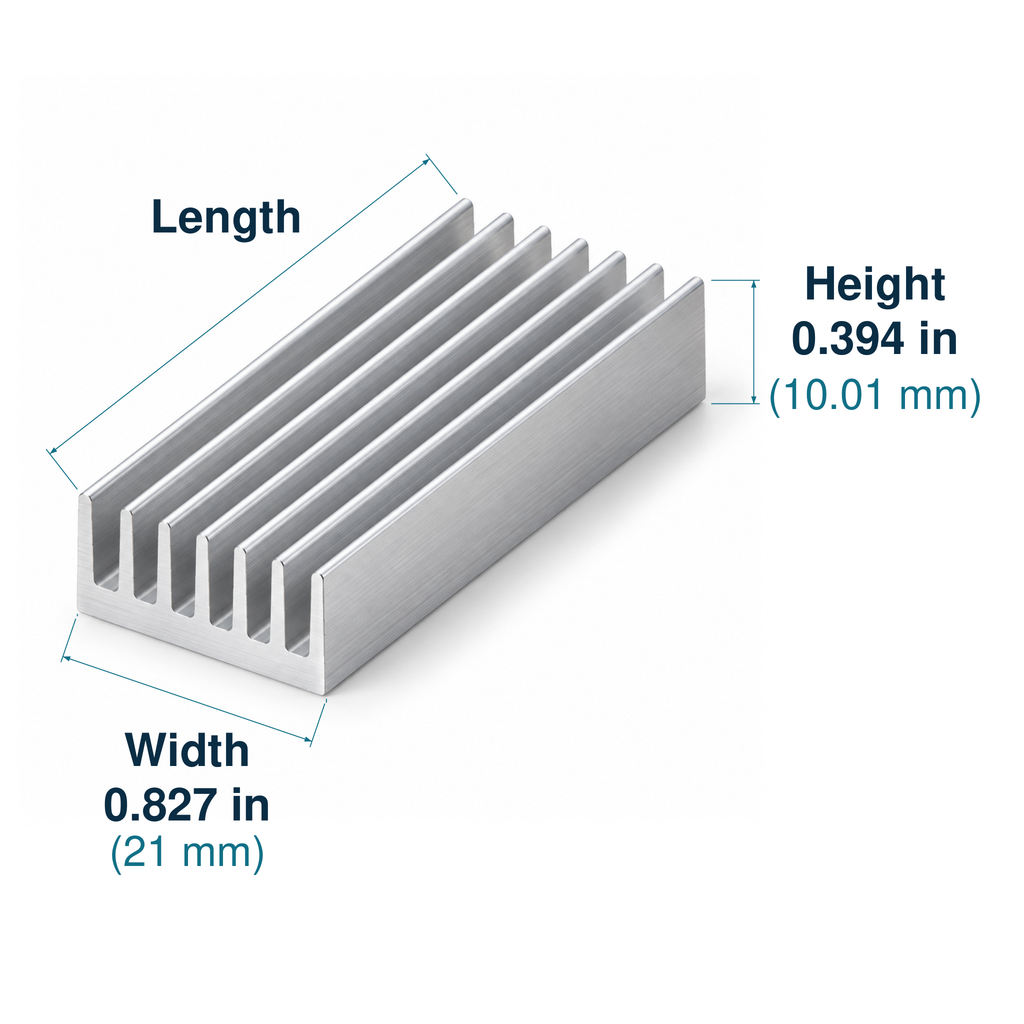

21mm / 0.827''
10mm / 0.394''
Fin Height 7.51mm / 0.296''
Base Height 2.5mm / 0.098''
C/W/3''(75mm) Approximate 9.617
Weight 310gr/m - 0.02lbs/inch

All Heatsink Extrusions Sold by Length (Inch or mm)

If You Require A More Specific Cut Length, select next rounded up length from the drop down above, and then write your special instructions Note at your Cart during Checkout. (Example: Select 4'' for a 3.75'' length cut or select 100mm for 95mm length cut.)

Please contact us to request a quote for any fabrication (drilling, tapping, milling, etc.) or Surface Treatment (Anodizing, Powder Coating etc.) to be performed on your heatsink.
