Heatsink for Quantum Board - W
| Material | Aluminum 6063-T5 |
| Surface Finish | Mill Finish (Non-Anodized) |

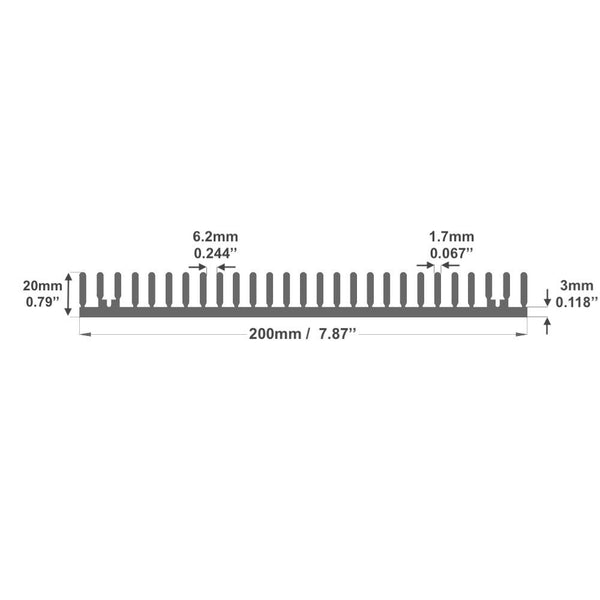

| Fin Height | 20.00 mm / 0.790" |
| Base Thickness | 3.00 mm / 0.118" |
Affordable Heatsinks for DIY Growers.
More Fins/Surface Area compared to Traditional Quantum Board Heatsinks. More Surface Area means Better Heat dissipation, Longer LED Lifetime.

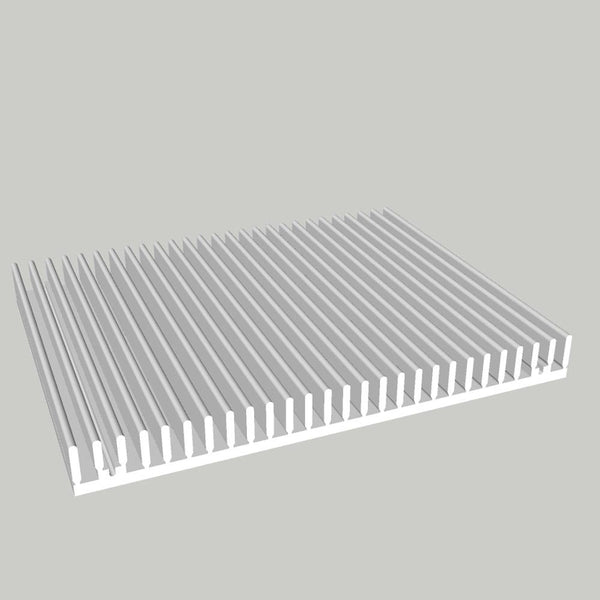

Heatsink Extrusions for Quantum Boards.
| Size Option | Width | Length | Weight | Rth | Watt |

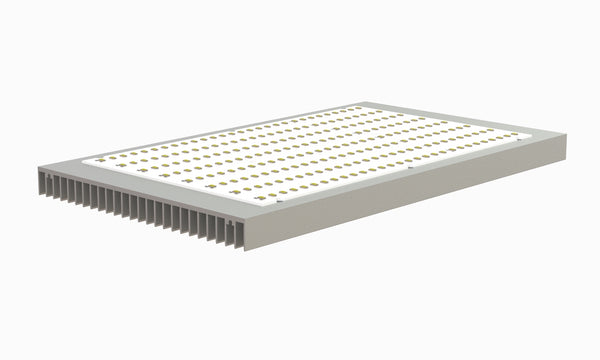

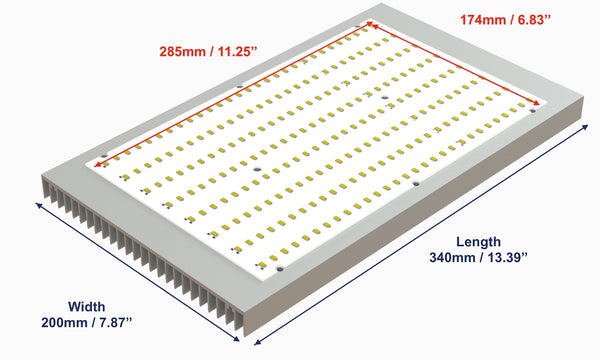

| SINGLE-W | 200mm (7.87'') | 340mm (13.39'') | 1.2kg (2.6lbs) | 0.20 | 100-150 |

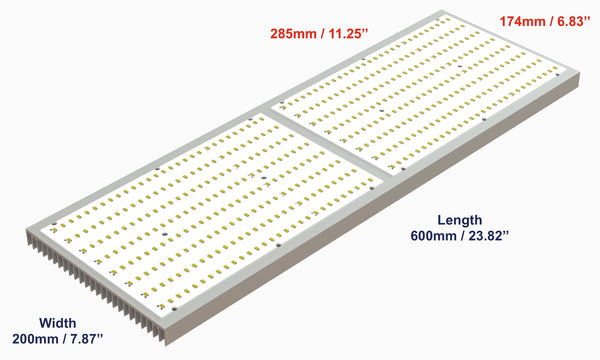

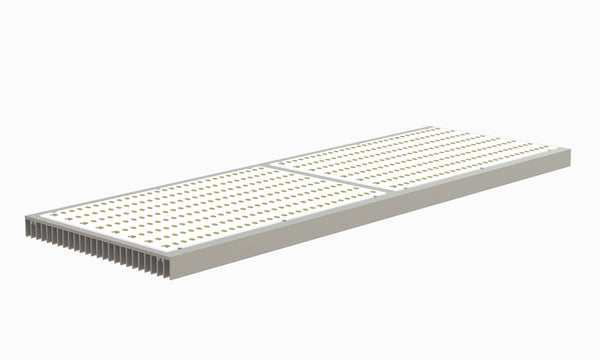

| DOUBLE-W | 200mm (7.87'') | 600mm (23.62'') | 2.1kg (4.6lbs) | 0.11 | 100-260 |

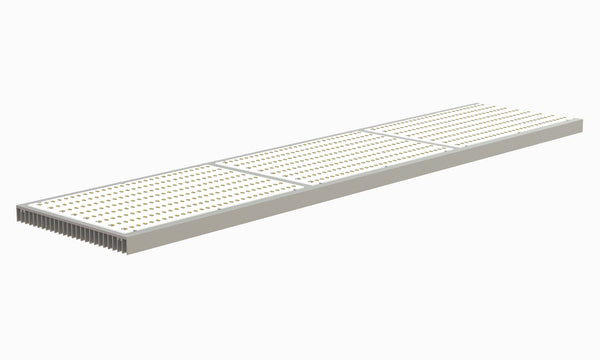

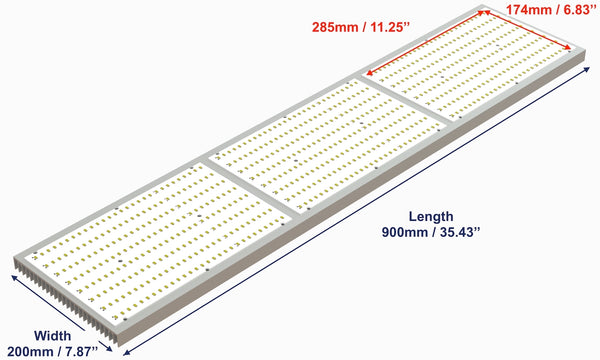

| TRIPLE-W | 200mm (7.87'') | 900mm (35.43'') | 3.2kg (7.0lbs) | 0.07 | 100-325 |
Mounting: Heatsinks are not pre-drilled for PCB boards. Boards can be mounted using self-tapping screws after drilling the required holes.
LED Quantum Boards are shown for illustration only and are not included.
Ordering
Select your required size from the drop-down menu above, enter the quantity you need, and add it to your cart. Dimensions and weights for each size are listed above.
Shipping
Shipping options and costs are calculated based on the total weight, dimensions, and destination of your order. Available shipping options will be displayed during checkout.
Custom Fabrication & Finishing
For production orders requiring additional fabrication or surface finishing, we offer factory services including drilling, tapping, milling, anodizing, powder coating, and other custom operations.
Custom fabrication and finishing services are subject to minimum order quantities (MOQ) and production lead times.
Please contact us for a quote with your required profile, quantity, finished dimensions, and fabrication or finishing specifications.
